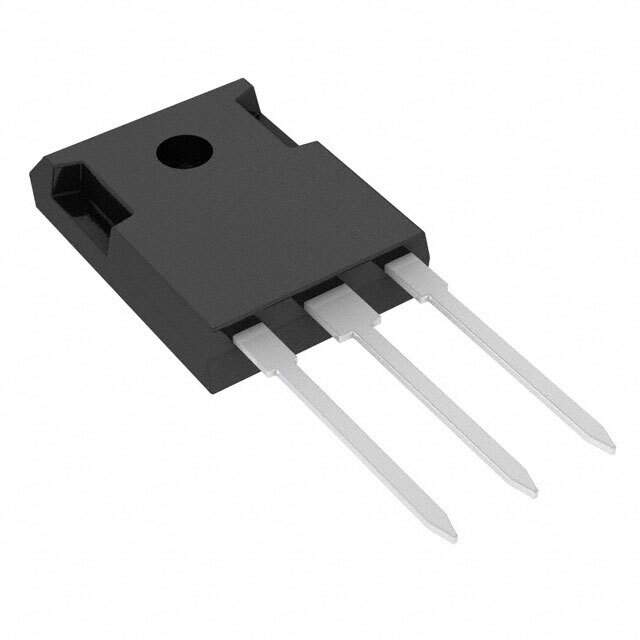

UG30BPT-E3/45

Part No UG30BPT-E3/45
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 100V 30A TO3P / Diode Array 1 Pair Common Cathode Standard 100 V 30A Through Hole TO-3P-3, SC-65-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Vishay General Semiconductor - Diodes Division
Package Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 1.15 V @ 30 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 15 µA @ 100 V
Operating Temperature - Junction -65°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-3P-3, SC-65-3
Supplier Device Package TO-247AD (TO-3P)
Base Product Number UG30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 750
Win Source Part Number 1229481-UG30BPT-E3/45
Ultra Librarian 3D Model Ultra Librarian UG30BPT-E3/45 CAD Model

Description

The 1229481-UG30BPT-E3/45 is a fast recovery diode array that has a voltage rating of 100V and a forward voltage of 1.15V @ 30A.

  • Voltage Rating: 100V
  • Forward Voltage: 1.15V @ 30A
  • Reverse Recovery Time: 35ns
  • Current Leakage: 15µA @ 100V
  • Diode Configuration: 1 pair common cathode
  • Current Average Rectified (Io): 30A
  • Package Type: TO-3P-3, SC-65-3
  • Supplier Device Package: TO-247AD (TO-3P)
