Same model may have multiple batches, images only for reference.

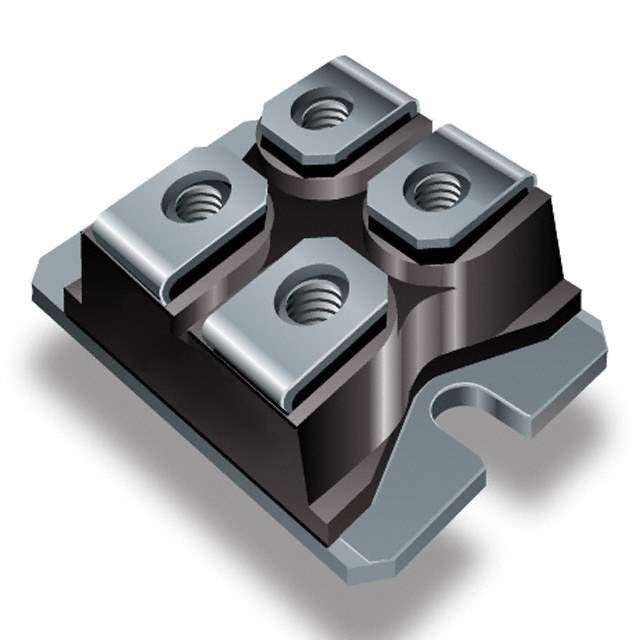

UFB200FA40P Real Image
Same model may have multiple batches, images only for reference.

UFB200FA40P

Part No UFB200FA40P
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE GEN PURP 400V 202A SOT227
Datasheet
UFB200FA40P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Obsolete(EOL)
Diode Configuration 2 Independent
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400V
Current - Average Rectified (Io) (per Diode) 202A
Voltage - Forward (Vf) (Max) @ If 1.24V @ 100A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 93ns
Current - Reverse Leakage @ Vr 50μA @ 400V
Operating Temperature - Junction -55°C to 175°C
Mounting Chassis Mount
Case / Package SOT-227
Win Source Part Number 057249-UFB200FA40P
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UFB200FA40P CAD Model

Description

The Vishay UFB200FA40P is a chassis mount diode IC.

  • Type: Chassis Mount Diode IC
  • Application: Various electronic devices that require standard diodes
  • Maximum DC Reverse Voltage: 400V
  • Maximum Forward Voltage: 1.24V @ 100A
  • Popularity: Medium
  • Supply and Demand: Limited
  • Recommendation: Various electronic devices that require standard diodes
