Products specifications

Manufacturer Rohm Semiconductor
Packaging Reel
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 80V
Current - Average Rectified (Io) (per Diode) 100mA
Voltage - Forward (Vf) (Maximum) at If 1.2V at 100mA
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage at Vr 100nA at 70V
Operating Temperature - Junction 150°C (Maximum)
Mounting Style SMD

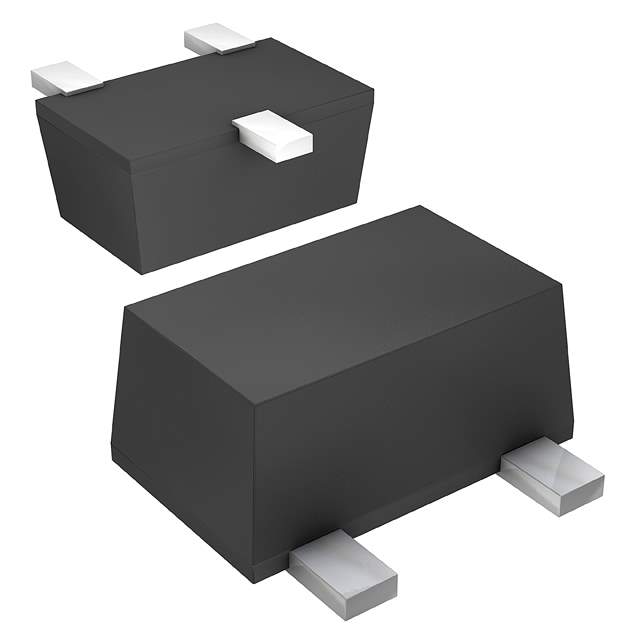

Manufacturer Package SC-89, SOT-490
Supplier Device Package EMD3F
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 801985-DAN217WMTL
Ultra Librarian 3D Model Ultra Librarian DAN217WMTL CAD Model

Description

The DAN217WMTL is a diode array manufactured by Rohm Semiconductor. It's designed for various circuit protection applications, offering fast switching speeds and low forward voltage drop. These features make it suitable for protecting sensitive electronic components from voltage spikes and surges.

Applications:

  • ESD Protection: Used to protect data lines and I/O ports from electrostatic discharge (ESD) events.
  • Surge Protection: Provides surge protection for electronic circuits against voltage transients.
  • Voltage Clamping: Clamps voltage levels to protect sensitive components from overvoltage conditions.
  • Data Line Protection: Protects data communication lines in various electronic devices.
  • Interface Protection: Protects interfaces from voltage spikes in electronic systems.

Features:

  • Fast Switching Speed: Offers rapid response to voltage transients, ensuring quick protection.
  • Low Forward Voltage Drop: Minimizes voltage drop across the diode, improving circuit efficiency.
  • Small Package Size: Compact package allows for easy integration into space-constrained designs.
  • High Surge Capability: Provides robust protection against high-energy surges.
  • Low Leakage Current: Minimizes leakage current, reducing power consumption.

Benefits:

  • Enhanced System Reliability: Protects electronic components from damage due to ESD and voltage surges, improving system reliability.
  • Improved Circuit Performance: Maintains optimal circuit performance by clamping voltage levels and preventing overvoltage conditions.
  • Compact Design: Small package size enables integration into space-constrained applications.
  • Cost-Effective Protection: Provides a cost-effective solution for protecting electronic circuits.
  • Reduced Downtime: Minimizes downtime due to component failure caused by ESD and voltage surges.

The DAN217WMTL diode array is commonly used in applications where reliable protection against ESD and voltage transients is required. Its fast switching speed and low forward voltage drop make it an ideal choice for protecting sensitive electronic components in a wide range of devices. The compact package size and high surge capability make it suitable for various applications, including mobile devices, communication equipment, and industrial control systems. The array is typically surface-mounted, allowing for automated assembly and efficient board layout.
