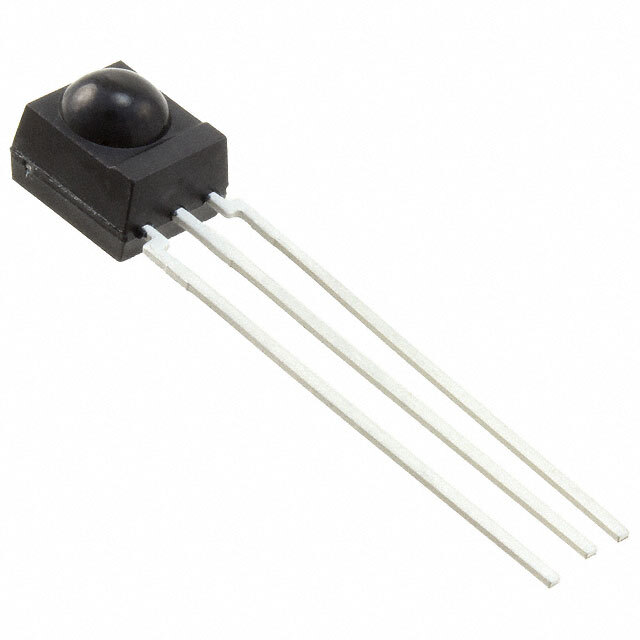

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Sensing Distance 35m
B.P.F. Center Frequency 56.0kHz
Voltage - Supply 4.5 V ~ 5.5 V
Current - Supply 1.1 mA
Orientation Side View
Mounting Type Through Hole
Temperature Range - Operating -25°C ~ 85°C
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1566230-TSOP2156
Ultra Librarian 3D Model Ultra Librarian TSOP2156 CAD Model
