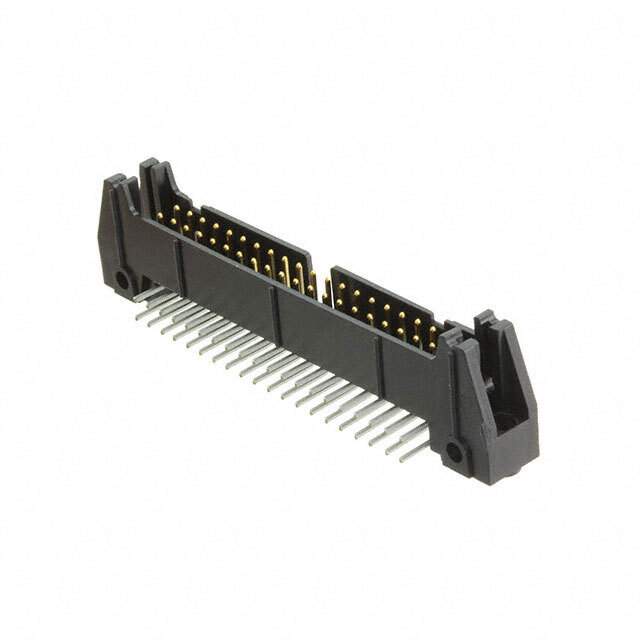

3432-5002 Real Image
Same model may have multiple batches, images only for reference.

3432-5002

Part No 3432-5002
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER R/A 40POS 2.54MM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.112" (2.84mm)
Insulation Height 0.340" (8.64mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0μin (0.76μm)
Contact Finish - Post Tin-Lead
Contact Material Copper Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1.75A
Contact Finish Thickness - Post 200.0μin (5.08μm)
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 751338-3432-5002
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3432-5002 CAD Model

Description

The 3M 751338-3432-5002 is a 40-position right-angle through-hole header connector.

  • Features: Keying slot and mounting flange for easy installation and secure mounting
  • Contact Type: Male pin
  • Termination: Solder
  • Pitch-Mating: 0.100" (2.54mm)
  • Shrouding: Shrouded-4 wall
  • Contact Finish Mating: Gold with a thickness of 30.0μin (0.76μm)
  • Contact Finish Post: Tin-lead with a thickness of 200.0μin (5.08μm)
  • Applications: Telecommunications, networking, and industrial control systems
  • Current Rating: 1.75A
  • Packaging: Bulk
  • Manufacturer Pack Quantity: 200 units
