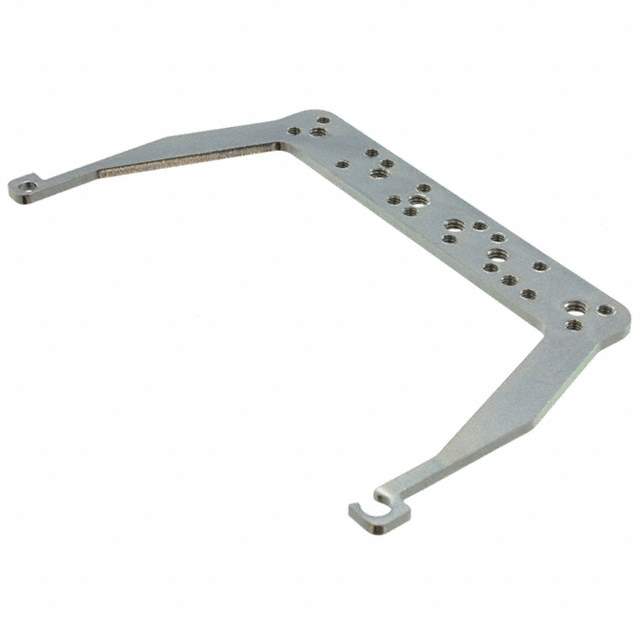

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors>Heavy Duty Connector Accessories
Mfr HARTING
Series Han-Modular®
Package Bag
Accessory Type Ground Terminal
For Use With/Related Products Han® 24B Bases
Specifications -
Ratings -
Base Product Number 09000005
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Standard Package 2 pcs
Win Source Part Number 1380417-09000005211
Ultra Librarian 3D Model Ultra Librarian 09000005211 CAD Model

Description

The HARTING Ground Terminal is a heavy-duty connector accessory designed for use with Han® 24B Bases.

  • Accessory Type: Ground terminal
  • Package Quantity: 2 pieces
  • Category: Connectors and interconnects
  • Application: For use with Han® 24B Bases
  • Moisture Sensitivity Level: 1 (unlimited)
  • REACH: Unaffected by REACH regulations
  • ECCN: EAR99
