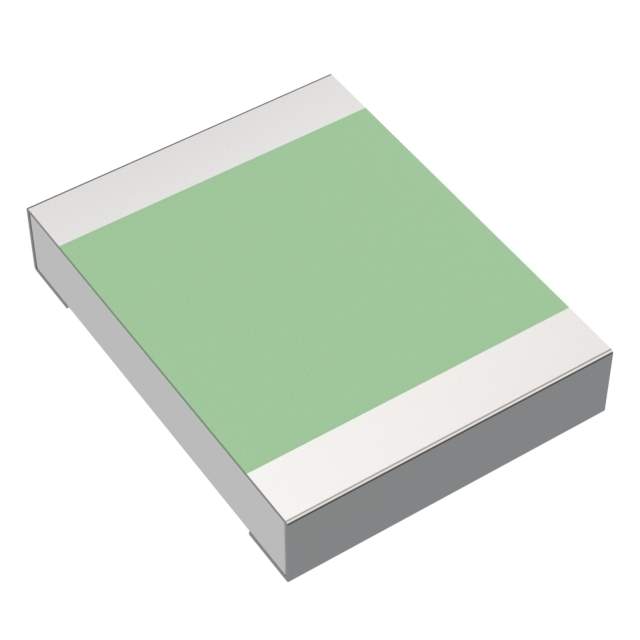

Same model may have multiple batches, images only for reference.

TNPW121012K0BEEA

Name: TNPW121012K0BEEA
Brand: Vishay
SKU: 1326376
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TNPW121012K0BEEA
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	RES 12K OHM 0.1% 1/3W 1210 / 12 kOhms ±0.1% 0.333W, 1/3W Chip Resistor 1210 (3225 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
Datasheet	TNPW121012K0BEEA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Manufacturer	Vishay Dale
Packaging	Reel - TR
Resistance	12 kOhms
Tolerance	±0.1%
Power (Watts)	0.333W, 1/3W
Composition	Thin Film
Features	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient	±25ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Case / Package	1210 (3225 Metric)
Supplier Device Package	1210
Ratings	AEC-Q200
Size / Dimension	0.126" L x 0.096" W (3.20mm x 2.45mm)
Height - Seated (Max)	0.030" (0.75mm)
Number of Terminations	2
Base Product Number	TNPW1210
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0030
Other Part Number	TNPW1210 12K 0.1% T9 ET1 E3,TNPW121012K0BEEA-ND,541-4620-1,541-4620-2,541-4620-6
Standard Package	5,000
Win Source Part Number	1326376-TNPW121012K0BEEA
Ultra Librarian 3D Model	Ultra Librarian TNPW121012K0BEEA CAD Model

Description

The TNPW121012K0BEEA is a chip resistor produced by Vishay Dale.

Composition: thin-film
Resistance: 12 kOhms
Tolerance: ±0.1%
Features: moisture-resistant and anti-sulfur, automotive applications
Power Rating: 0.333W
Temperature Coefficient: ±25ppm/°C
Package Contains: 5,000 resistors
Supplier Device Package: 1210 (3225 Metric)
Rating: AEC-Q200 rated
Temperature Range: -55°C ~ 155°C
