Same model may have multiple batches, images only for reference.

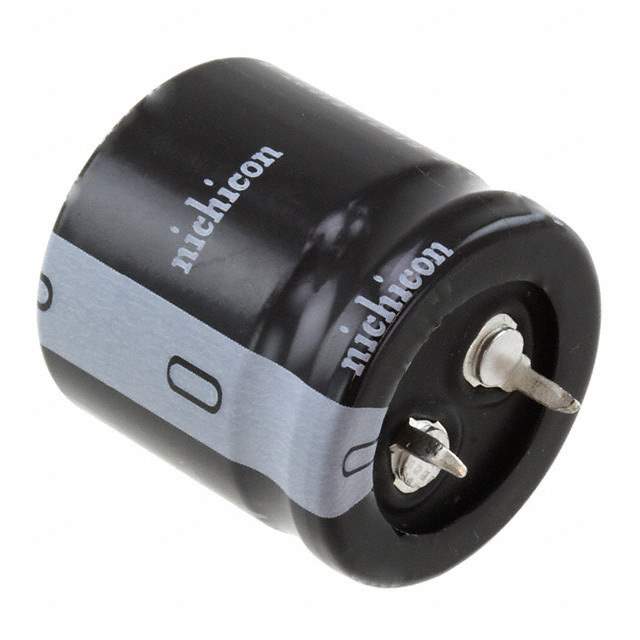

LLS2W101MELA Real Image
Same model may have multiple batches, images only for reference.

LLS2W101MELA

Part No LLS2W101MELA
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 450V SNAP / Cap Aluminum Lytic 100uF 450V 20% (25 X 25mm) Snap-In 10mm 970mA 3000h 85°C Bulk
Datasheet
LLS2W101MELA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Series LLS
Packaging Bulk
Capacitance 100μF
Tolerance ±20%
Voltage Rating DC 450V
Lifetime @ Temp. 3000 Hrs @ 85°C
Operating Temperature Range -25°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 970mA @ 120Hz
Ripple Current - High Frequency 1.3871A @ 50kHz
Lead Spacing 0.394" (10.00mm)
Dimension 0.984" Dia (25.00mm)
Height - Seated (Maximum) 0.984" (25.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 778620-LLS2W101MELA
Popularity Medium
Supply and Demand Status Limited
Family Name LS
Introduction Date September 12, 2003
ECCN EAR99
Country of Origin China, Japan Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian LLS2W101MELA CAD Model

Description

The Nichicon LLS series capacitor is a polarized radial, can-snap-in type capacitor from Nichicon.

  • Capacitance: 100μF
  • Voltage Rating: 450VDC
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): Not specified
  • Ripple Current (120Hz): 970mA
  • Ripple Current (50kHz): 1.3871A
  • Lifetime: 3000 hours @ 85°C
  • Diameter: 0.984" (25.00mm)
  • Height: 0.984" (25.00mm)
  • Lead Spacing: 0.394" (10.00mm)
  • Applications: General
  • Packaging: Bulk
  • Alternative Parts: LSG101M2W-A2530, LSG101M2W-A2525, EETED2W101J, ECEC2WC101BB
  • Introduction Date: September 12, 2003
  • Manufacturing Location: China, Japan, Malaysia
  • Estimated EOL Date: 2027
