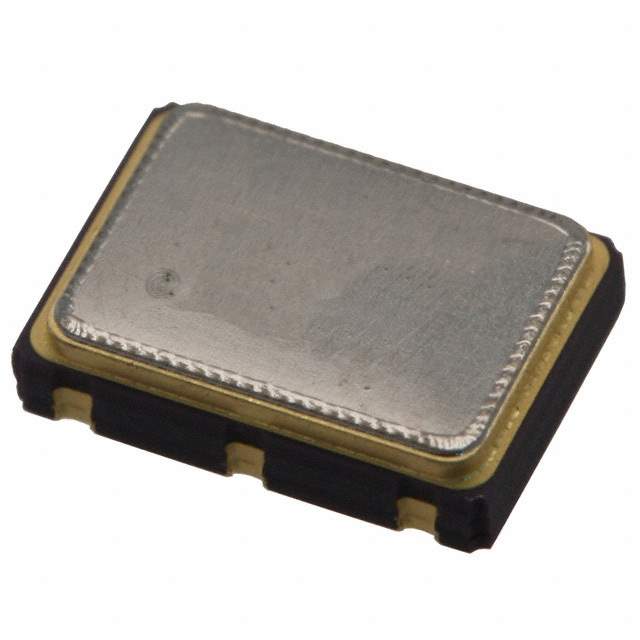

357LD3C027M0000 Real Image
Same model may have multiple batches, images only for reference.

357LD3C027M0000

Part No 357LD3C027M0000
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description XTAL OSC VCXO 27.0000MHZ HCMOS / 27 MHz VCXO HCMOS, TTL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Datasheet
357LD3C027M0000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr CTS-Frequency Controls
Series 357
Package Tape & Reel
Base Resonator Crystal
Type VCXO
Frequency 27 MHz
Function Enable/Disable
Output HCMOS, TTL
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Absolute Pull Range (APR) ±100ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 30mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
California Prop 65 Warning Information
Win Source Part Number 1349040-357LD3C027M0000
Ultra Librarian 3D Model Ultra Librarian 357LD3C027M0000 CAD Model

Description

The CTS-Frequency Controls 1349040-357LD3C027M0000 is a 27MHz VCXO oscillator with an absolute pull range (APR) of ±100ppm and ±50ppm frequency stability.

  • Package: 6-SMD, no lead
  • Dimension: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Operating Temperature: -20°C to 70°C
  • Function: Enable/Disable
  • Output Signals: HCMOS and TTL
  • Supply Voltage: 3.3V
  • Maximum Current Supply: 30mA
  • Packaging: Tape & reel
  • Standard Package Quantity: 1,000
