Same model may have multiple batches, images only for reference.

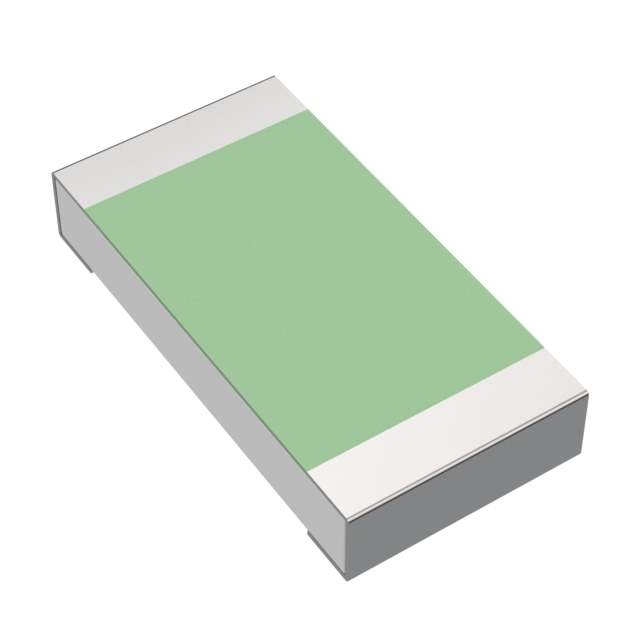

TNPW1206300KBEEA Real Image
Same model may have multiple batches, images only for reference.

TNPW1206300KBEEA

Part No TNPW1206300KBEEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 300K OHM 0.1% 1/4W 1206 / 300 kOhms ±0.1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
Datasheet
TNPW1206300KBEEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Dale
Packaging Reel - TR
Resistance 300 kOhms
Tolerance ±0.1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Base Product Number TNPW1206
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 541-TNPW1206300KBEEACT,TNPW1206 300K 0.1% T9 ET1 E3,541-TNPW1206300KBEEATR,TNPW1206300KBEEA-ND,541-TNPW1206300KBEEADKR
Standard Package 5,000
Win Source Part Number 1327193-TNPW1206300KBEEA
Ultra Librarian 3D Model Ultra Librarian TNPW1206300KBEEA CAD Model

Description

The Vishay Dale TNPW1206300KBEEA resistor is a thin film chip resistor designed for surface mount applications.

  • Manufacturer: Vishay Dale
  • Product Name: TNPW1206300KBEEA
  • Resistance: 300 kOhms
  • Power Rating: 0.25W
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Anti-Sulfur: Yes
  • Automotive AEC-Q200 Rated: Yes
  • Package: Reel - TR
  • Device Package: 1206
  • Temperature Range: -55°C to 155°C
  • AEC-Q200: Yes
  • Height: 0.026" (0.65mm)
  • Length: 0.126" (3.20mm)
  • Width: 0.063" (1.60mm)
  • ROHS3 Compliant: Yes
