Same model may have multiple batches, images only for reference.

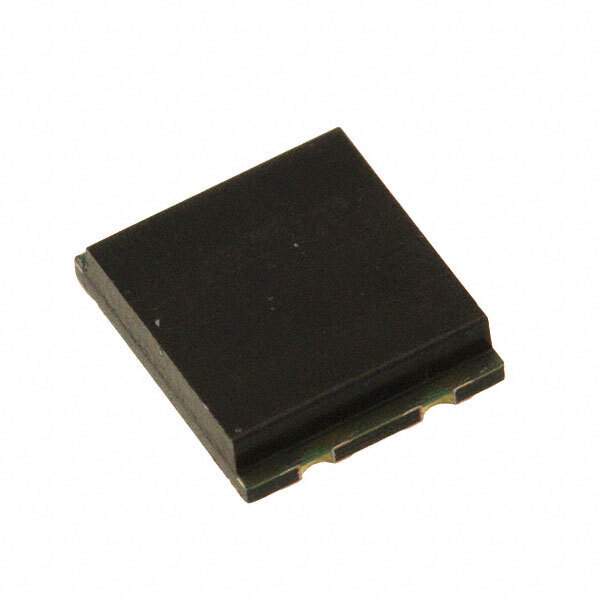

TEMD5110X01 Real Image
Same model may have multiple batches, images only for reference.

TEMD5110X01

Part No TEMD5110X01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE PIN HI SPEED MINI SMD
Datasheet
TEMD5110X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Active
Wavelength 940nm
Spectral Range 790nm to 1050nm
Diode Type PIN
Response Time 100ns
Voltage - DC Reverse (Vr) (Max) 60V
Current - Dark (Typ) 2nA
Active Area 7.5mm²
Viewing Angle 130°
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Dimension 4-SMD, No Lead
Win Source Part Number 032097-TEMD5110X01
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TEMD5110X01 CAD Model

Description

The Vishay 032097-TEMD5110X01 is a PIN diode type sensor used in various applications such as transducers.

  • Reverse Voltage: 60V
  • Viewing Angle: 130°
  • Response Time: 100ns
  • Active Area: 7.5mm²
  • Spectral Range: 790nm to 1050nm
  • Operating Temperature Range: -40°C to 100°C

It is mounted on SMD (SMT) with 4-SMD, No Lead. However, the supply and demand status is limited.
