Same model may have multiple batches, images only for reference.

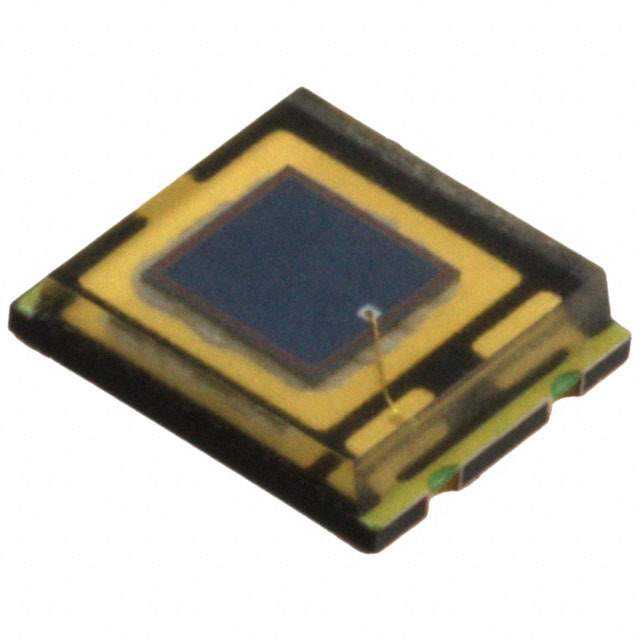

TEMD5020X01 Real Image
Same model may have multiple batches, images only for reference.

TEMD5020X01

Part No TEMD5020X01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE 430 TO 1100 NM / Photodiode 900nm 100ns 130° 4-SMD, No Lead
Datasheet
TEMD5020X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photodiodes
Mfr Vishay Semiconductor Opto Division
Package Tape & Reel
Wavelength 900nm
Spectral Range 430nm ~ 1100nm
Diode Type PIN
Response Time 100ns
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Dark (Typ) 2nA
Active Area 4.4mm2
Viewing Angle 130°
Temperature Range - Operating -40°C ~ 100°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Base Product Number TEMD5020
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.1050
Other Names 751-1047-6,751-1047-1,751-1047-2
Standard Package 1,500
Win Source Part Number 978546-TEMD5020X01
Ultra Librarian 3D Model Ultra Librarian TEMD5020X01 CAD Model

Description

The TEMD5020X01 is a PIN diode-type optical sensor from Vishay that has a response time of 100ns.

  • Response Time: 100ns
  • Viewing Angle: 130 degrees
  • Spectral Range: 430nm to 1100nm
  • Package: Tape and Reel
  • Standard Package: 1,500
  • Mounting: SMD (SMT)
  • Maximum DC Reverse Voltage (Vr): 60V
  • Active Area: 4.4mm2
  • Operating Temperature Range: -40°C to 100°C
  • REACH: Unaffected
