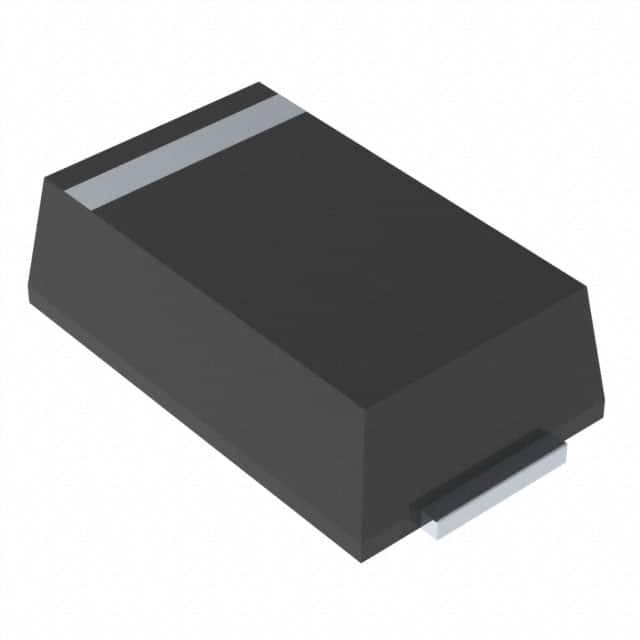

Same model may have multiple batches, images only for reference.
SMP11A-M3/84A
Same model may have multiple batches, images only for reference.

SMP11A-M3/84A

Part No SMP11A-M3/84A
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 11VWM 18.2VC DO220AA
Datasheet
SMP11A-M3/84A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 51 Weeks
Features 18.2V Clamp 22A Ipp Tvs Diode Surface Mount DO-220AA (SMP)
Manufacturer Vishay
Series TransZorb®, eSMP®
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package DO-220AA
Case / Package DO-220AA (SMP)
Family Name SMP11
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number SMP11A-M3/84AGITR, SMP11A-E3/84A, SMP11A-E3/84A-ND, SMP11A-M3/84AGICT, SMP11A-M3/84AGIDKR, SMP11A-M3/84A-ND
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934396-SMP11A-M3/84A
Ultra Librarian 3D Model Ultra Librarian SMP11A-M3/84A CAD Model

Description

The Vishay SMP11A-M3/84A is a TransZorb™, eSMP™ TVS diode that has an operating temperature range of -55°C to 150°C (TJ).

  • Operating Temperature: -55°C to 150°C (TJ)
  • Clamp: 18.2V
  • Ipp: 22A
  • Package: DO-220AA (SMP)
  • Mounting: Surface mountable
  • Family: SMP11 family
  • Category: Circuit protection
  • Supply and demand status: Balanced
  • Pieces per package: 3,000
  • MSL level: 1 (unlimited)
  • Estimated production lead time: 51 weeks
  • REACH: REACH unaffected
  • HTSUS code: 8541.10.0080
