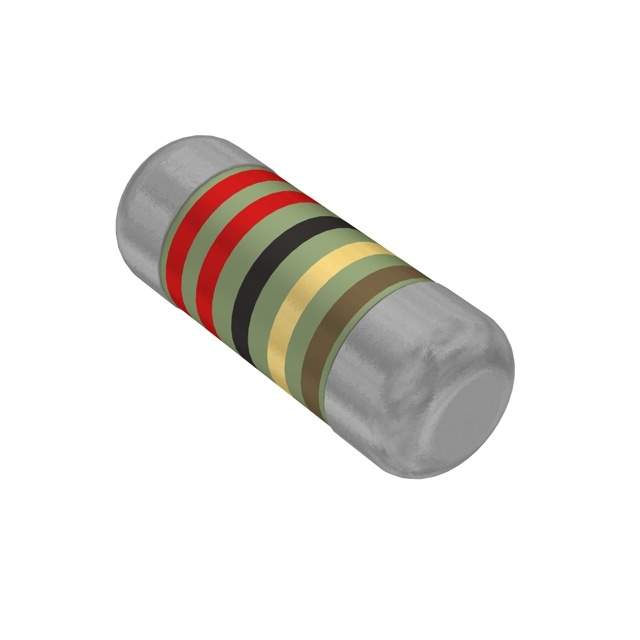

SMM02040C2209FB300 Real Image
Same model may have multiple batches, images only for reference.

SMM02040C2209FB300

Part No SMM02040C2209FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 22 OHM 1% 1/4W MELF 0204
Datasheet
SMM02040C2209FB300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 40 Weeks
Features 22 Ohms ±1% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Manufacturer Vishay
Series SMM0204
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Package MELF, 0204
Case / Package Mini MELF
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Part Number 749-1190-6, 749-1190-2, 749-1190-1
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 896238-SMM02040C2209FB300
Ultra Librarian 3D Model Ultra Librarian SMM02040C2209FB300 CAD Model

Description

The Vishay SMM02040C2209FB300 is a mini MELF, 0204 chip resistor designed for automotive AEC-Q200 and pulse withstanding thin film applications.

  • Resistance: 22 Ohms ±1% 0.25W, 1/4W
  • Operating Temperature Range: -55°C to 125°C
  • Package: Reel package of 3000
  • Estimated Production Lead Time: 40 weeks
