Same model may have multiple batches, images only for reference.

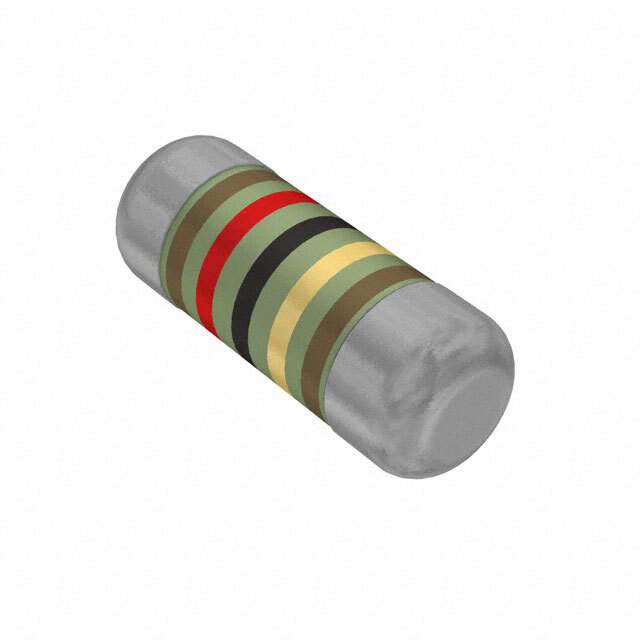

SMM02040C1209FB300 Real Image
Same model may have multiple batches, images only for reference.

SMM02040C1209FB300

Part No SMM02040C1209FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 12 OHM 1% 1/4W MELF 0204
Datasheet
SMM02040C1209FB300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 40 Weeks
Features 12 Ohms ±1% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Manufacturer Vishay
Series SMM0204
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Package MELF, 0204
Case / Package Mini MELF
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Part Number 749-1186-1, 749-1186-2, 749-1186-6
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 896233-SMM02040C1209FB300
Ultra Librarian 3D Model Ultra Librarian SMM02040C1209FB300 CAD Model

Description

This chip resistor is a part of the SMM0204 series manufactured by Vishay.

  • Resistance: 12 Ohms ±1%
  • Power Rating: 0.25W, it is a 1/4W chip resistor MELF
  • Features: anti-sulfur and automotive AEC-Q200 compliant component that can withstand pulse
  • Operating Temperature Range: -55°C ~ 125°C
  • Mounting: Suitable for surface mount mounting
  • Package: mini MELF package
  • Quantity per package: 3000 units per package
  • Compliance: ROHS3 and REACH unaffected
