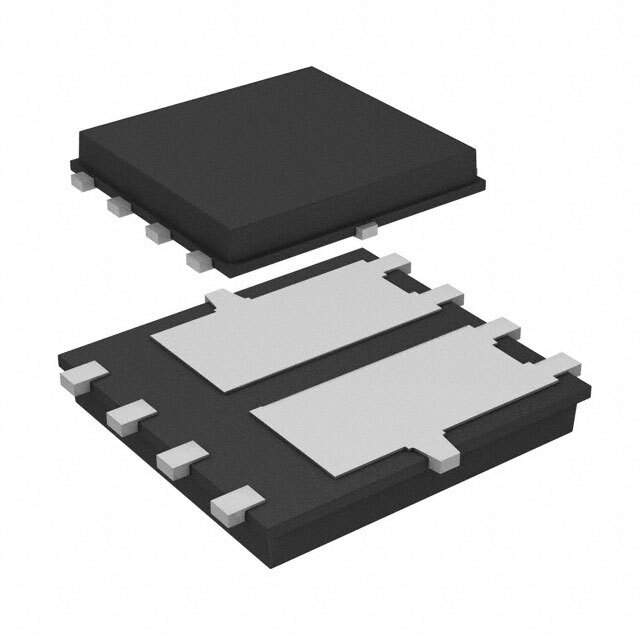

SIS903DN-T1-GE3

Part No SIS903DN-T1-GE3
Manufacturer Vishay
Catalog FETs - Arrays
Description MOSFET DUAL P-CHAN POWERPAK 1212 / Mosfet Array 20V 6A (Tc) 2.6W (Ta), 23W (Tc) Surface Mount PowerPAK® 1212-8 Dual
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
Mfr Vishay Siliconix
Series TrenchFET® Gen III
Package Tape & Reel
Technology MOSFET (Metal Oxide)
Configuration 2 P-Channel (Dual)
Drain to Source Voltage (Vdss) 20V
Current - Continuous Drain (Id) @ 25°C 6A (Tc)
Rds On (Max) @ Id, Vgs 20.1mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 42nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 2565pF @ 10V
Power - Max 2.6W (Ta) , 23W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case PowerPAK® 1212-8 Dual
Supplier Device Package PowerPAK® 1212-8 Dual
Base Product Number SIS903
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1337034-SIS903DN-T1-GE3
Ultra Librarian 3D Model Ultra Librarian SIS903DN-T1-GE3 CAD Model

Description

The Vishay Siliconix TrenchFET® Gen III series part number 1337034-SIS903DN-T1-GE3 is a MOSFET (Metal Oxide) FET, MOSFET array.

  • Manufacturer: Vishay Siliconix
  • Series: TrenchFET® Gen III
  • Configuration: Dual P-Channel
  • Drain-to-Source Voltage: 20V
  • Power (Max): 2.6W (Ta), 23W (Tc)
  • Gate Charge: 42nC @ 10V
  • Input Capacitance: 2565pF @ 10V
  • Current: 6A (Tc)
  • Rds On (Max): 20.1mOhm @ 5A, 4.5V
  • Vgs(th) (Max): 1V @ 250µA
  • Packaging: Tape and Reel
  • Package Size: PowerPAK® 1212-8 Dual
  • ECCN: EAR99
  • Temperature Range: -55°C to 150°C (TJ)
