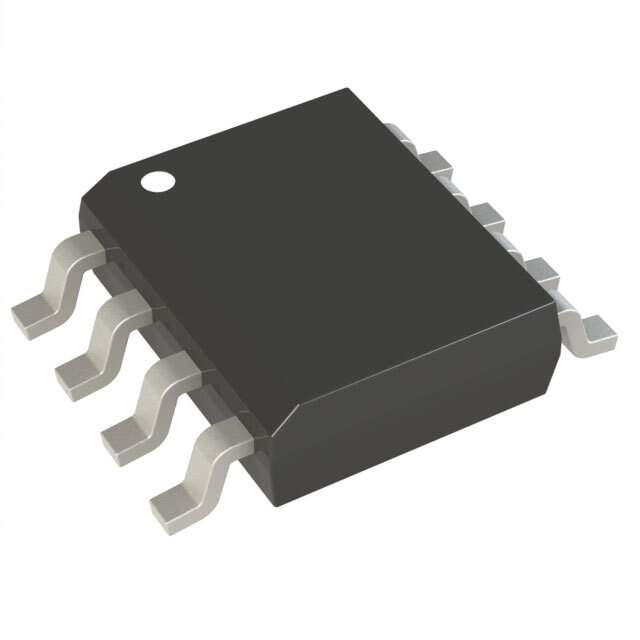

SIP41109DY-T1-E3 Real Image
Same model may have multiple batches, images only for reference.

SIP41109DY-T1-E3

Part No SIP41109DY-T1-E3
Manufacturer Vishay
Catalog PMIC - Gate Drivers
Description IC DRVR MOSF 1/2BRDG N-CH 8SOIC
Datasheet
SIP41109DY-T1-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 2
Gate Type N-Channel MOSFET
Supply Voltage - Operating 10.8 V to 13.2 V
Logic Voltage - VIL, VIH 1V, 4V
Current - Peak Output (Source, Sink) 800mA, 1A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 48V
Rise and Fall Time 45ns, 35ns
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 8-SO
Win Source Part Number 211724-SIP41109DY-T1-E3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SIP41109DY-T1-E3 CAD Model

Description

The Vishay SIP41109DY-T1-E3 is a half-bridge gate driver IC that has two N-channel MOSFETs.

  • Package: 8-SO
  • High Side Voltage: Up to 48V
  • Current Peak Output (Source): 800mA
  • Current Peak Output (Sink): 1A
  • Rise Time: 45ns
  • Fall Time: 35ns
  • Logic Voltage VIL: 1V
  • Logic Voltage VIH: 4V
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
