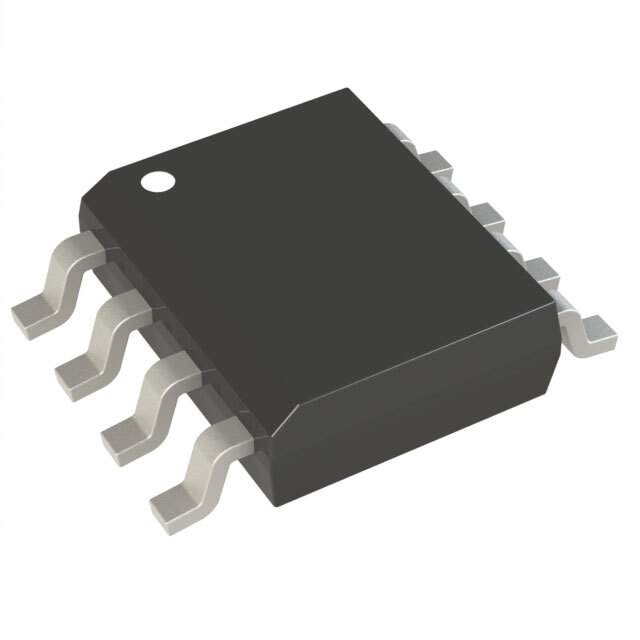

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Gate Drivers
Mfr Vishay Siliconix
Package Tape & Reel (TR)
Product Status Obsolete
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 2
Gate Type N-Channel MOSFET
Voltage - Supply 4.5V ~ 5.5V
Current - Peak Output (Source, Sink) 1A, 1A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 30 V
Rise / Fall Time (Typ) 30ns, 20ns
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number SI9912
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1253476-SI9912DY-E3
Ultra Librarian 3D Model Ultra Librarian SI9912DY-E3 CAD Model

Description

The Vishay SI9912DY-E3 is a half-bridge gate driver IC with two N-channel MOSFET gate drivers.

  • Channel Type: Synchronous
  • Input Type: Non-inverting
  • Mounting: Surface mountable
  • Package: 8-SOIC (0.154", 3.90mm Width)
  • High Side Voltage: 30V (maximum)
  • Peak Output Current: 1A
  • Rise Time: 30ns
  • Fall Time: 20ns
  • Category: Integrated Circuits (ICs)>PMIC - Gate Drivers
