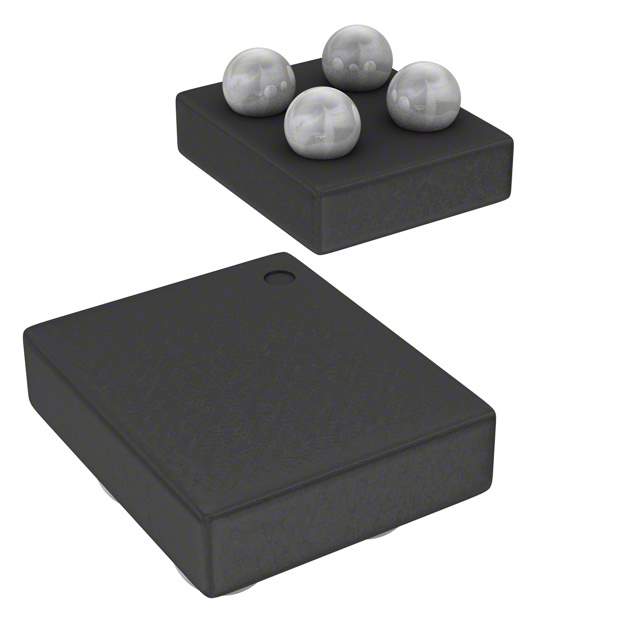

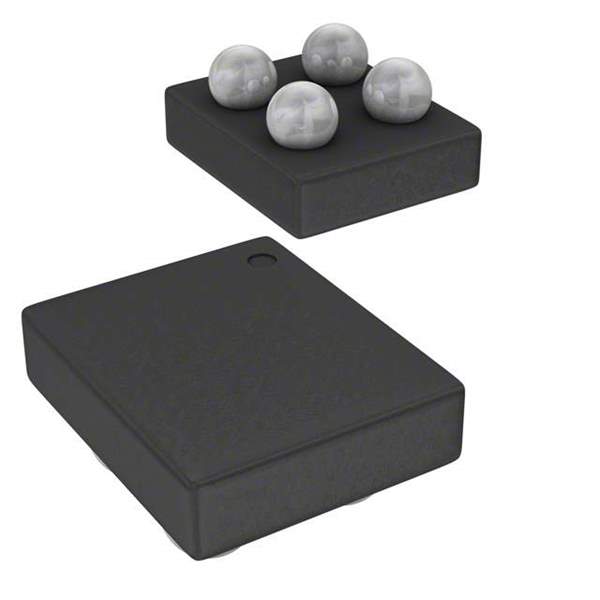

SI8817DB-T2-E1 Real Image1 SI8817DB-T2-E1 Real Image2
Same model may have multiple batches, images only for reference.
SI8817DB-T2-E1 Real Image1 SI8817DB-T2-E1 Real Image2
SI8817DB-T2-E1 Real Image1 SI8817DB-T2-E1 Real Image2
Same model may have multiple batches, images only for reference.

SI8817DB-T2-E1

Part No SI8817DB-T2-E1
Manufacturer Vishay
Catalog FETs - Single
Description MOSFET P-CH 20V MICROFOOT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Siliconix
Packaging Reel
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 20V
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Rds On (Maximum) at Id, Vgs 76mOhm at 1A, 4.5V
Vgs(th) (Maximum) at Id 1V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 19nC at 8V
Maximum Vgs ±8V
Input Capacitance (Ciss) (Maximum) at Vds 615pF at 10V
Power Dissipation (Maximum) 500mW
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Supplier Device Package 4-Microfoot
Manufacturer Package 4-XFBGA
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801113-SI8817DB-T2-E1
Ultra Librarian 3D Model Ultra Librarian SI8817DB-T2-E1 CAD Model

Description

The Vishay Siliconix SI8817DB-T2-E1 is a high-popularity electronic component that has a sufficient supply and demand status.

  • Technology: MOSFET (Metal Oxide)
  • FET Type: P-Channel
  • Win Source Part Number: 801113-SI8817DB-T2-E1
  • Manufacturer Pack Quantity: 3,000
  • Power Dissipation (Maximum): 500mW
  • Gate Charge (Qg) (Maximum) @ Vgs: 19nC @ 8V
  • Input Capacitance (Ciss) (Maximum) @ Vds: 615pF @ 10V
  • Temperature Range: -55°C to 150°C
  • Maximum Vgs: ±8V
