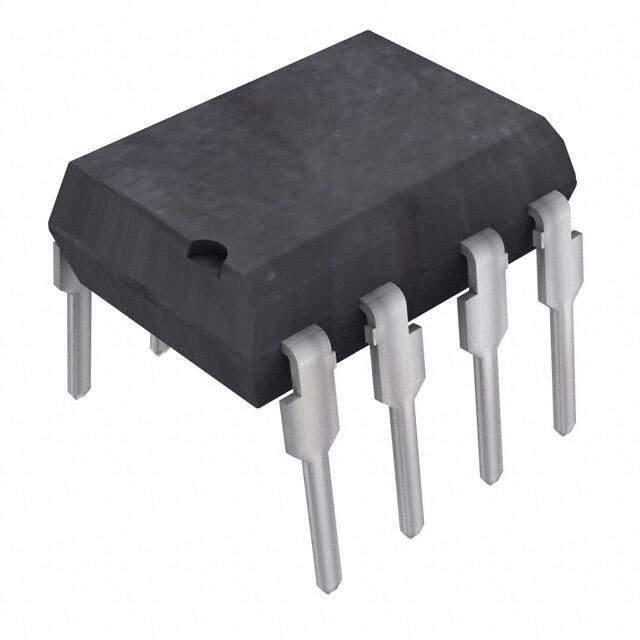

SFH6702 Real Image
Same model may have multiple batches, images only for reference.

SFH6702

Part No SFH6702
Manufacturer Vishay
Catalog Optoisolators - Logic Output
Description OPTOISO 5.3KV PUSH PULL 8SMD
Datasheet
SFH6702 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 5300Vrms
Common Mode Transient Immunity (Min) 1kV/μs
Input Type DC
Output Type Push-Pull, Totem Pole
Channel Output Current 25mA
Data Rate 5MBd
Propagation Delay tpLH / tpHL (Max) 300ns, 300ns
Rise and Fall Time 40ns, 10ns
Forward Voltage 1.6V
Continuous forward current- Max 10mA
Supply Voltage - Operating 4.5 V to 15 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SMD
Win Source Part Number 028278-SFH6702
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SFH6702 CAD Model

Description

The Vishay SFH6702 is an obsolete (EOL) isolator that comes in an 8-SMD package.

  • Case/Package: 8-SMD
  • Common Mode Transient Immunity: 1kV/μs
  • Isolation Voltage: 5300Vrms
  • Input Type: DC
  • Number of Channels: 1
  • Inputs-Side 1: 1
  • Inputs-Side 2: 0
  • Output Type: Push-Pull, Totem Pole
  • Data Rate: 5MBd
  • Forward Voltage: 1.6V
  • Rise Time: 40ns
  • Fall Time: 10ns
  • Channel Output Current: 25mA
  • Continuous Forward Current: 10mA
