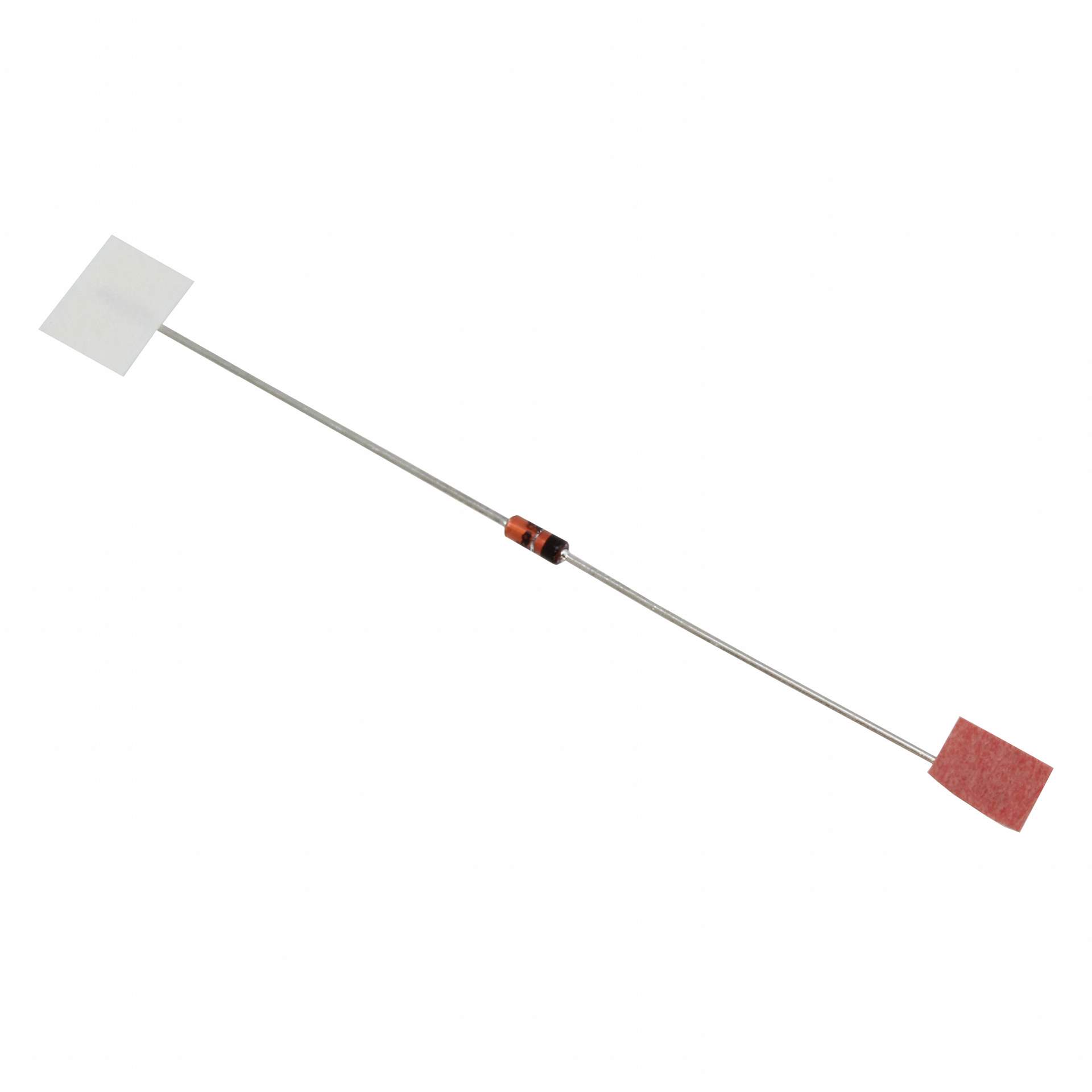

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Tape & Reel (TR),Cut Tape (CT)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Voltage - Forward (Vf) (Max) @ If 600 mV @ 200 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 10 ns
Current - Reverse Leakage @ Vr 5 µA @ 20 V
Capacitance @ Vr, F 50pF @ 0V, 1MHz
Mounting Type Through Hole
Package / Case DO-204AH, DO-35, Axial
Supplier Device Package DO-35 (DO-204AH)
Operating Temperature - Junction 125°C (Max)
Base Product Number SD103
Other Names SD103BGITR,SD103BGICT
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281838-SD103B-TR
Ultra Librarian 3D Model Ultra Librarian SD103B-TR CAD Model

Description

The SD103B-TR is a Schottky diode manufactured by Vishay General Semiconductor - Diodes Division.

  • Diode Type: Schottky
  • Recovery: Fast recovery
  • Reverse Voltage: 30V
  • Forward Current: 200mA
  • Package: DO-204AH, DO-35, Axial
  • Mounting: Through-hole
