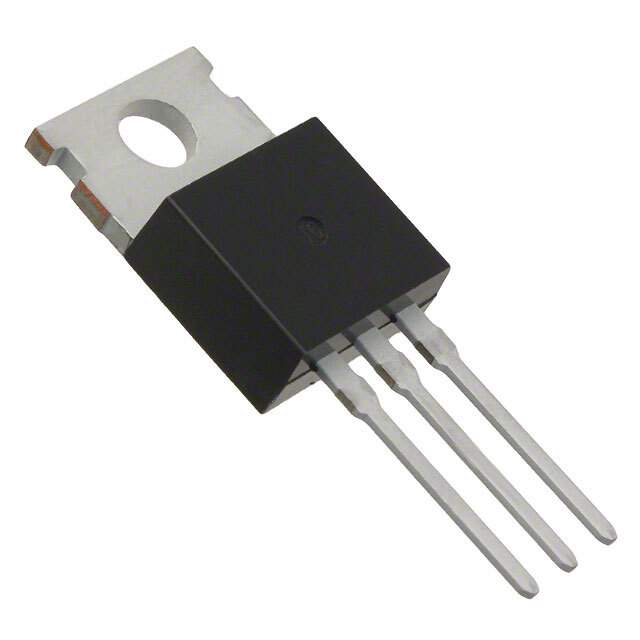

SBLF1030CTHE3/45 Real Image
Same model may have multiple batches, images only for reference.

SBLF1030CTHE3/45

Part No SBLF1030CTHE3/45
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Datasheet
SBLF1030CTHE3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Vishay General Semiconductor - Diodes Division
Series Automotive, AEC-Q101
Package Tube
Product Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) (per Diode) 5A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 30 V
Operating Temperature - Junction -40°C ~ 125°C
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack, Isolated Tab
Supplier Device Package ITO-220AB
Base Product Number SBLF1030
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282792-SBLF1030CTHE3/45
Ultra Librarian 3D Model Ultra Librarian SBLF1030CTHE3/45 CAD Model

Description

The 1282792-SBLF1030CTHE3/45 is a Schottky diode array with a voltage rating of 30 V and an average rectified current of 5 A.

  • Diode Configuration: 1 Pair Common Cathode
  • Forward Voltage: 550 mV @ 5 A
  • Operating Temperature Range: -40°C to 125°C
  • Package: TO-220-3 Full Pack, Isolated Tab
  • Packaging: tube packaging with a standard package of 50
  • Suitable for: use in rectification and power supply circuits
