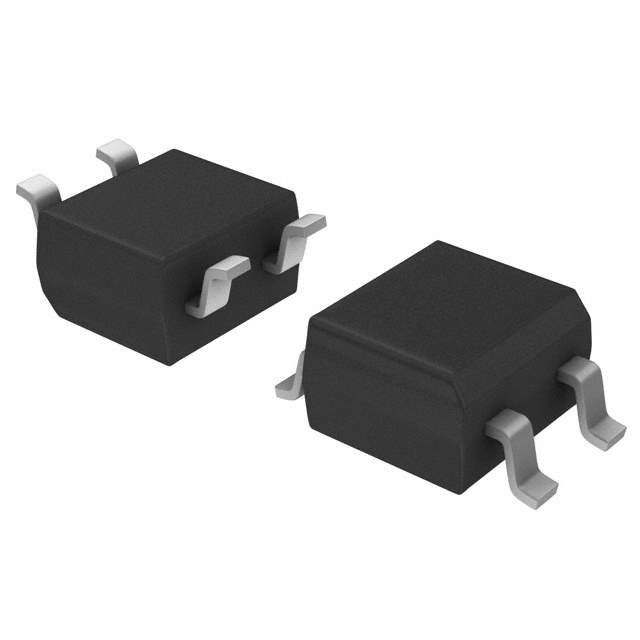

RMB2S-E3/45 Real Image
Same model may have multiple batches, images only for reference.

RMB2S-E3/45

Part No RMB2S-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 3P 200V TO269AA / Bridge Rectifier Single Phase Standard 200 V Surface Mount TO-269AA (MBS)
Datasheet
RMB2S-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Package Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200 V
Current - Average Rectified (Io) 500 mA
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 400 mA
Current - Reverse Leakage @ Vr 5 µA @ 200 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-269AA, 4-BESOP
Supplier Device Package TO-269AA (MBS)
Base Product Number RMB2
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1351534-RMB2S-E3/45
Ultra Librarian 3D Model Ultra Librarian RMB2S-E3/45 CAD Model

Description

The Vishay 1351534-RMB2S-E3/45 is a single-phase bridge rectifier packaged in a TO-269AA, 4-BESOP case.

  • Case: TO-269AA, 4-BESOP
  • Maximum Peak Reverse Voltage: 200V
  • Average Rectified Current: 500mA
  • Reverse Leakage Current @ 200V: 5 µA
  • Operating Temperature: -55°C to 150°C
  • Category: Discrete Semiconductor Products - Diodes
  • Status: Active
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
