Same model may have multiple batches, images only for reference.

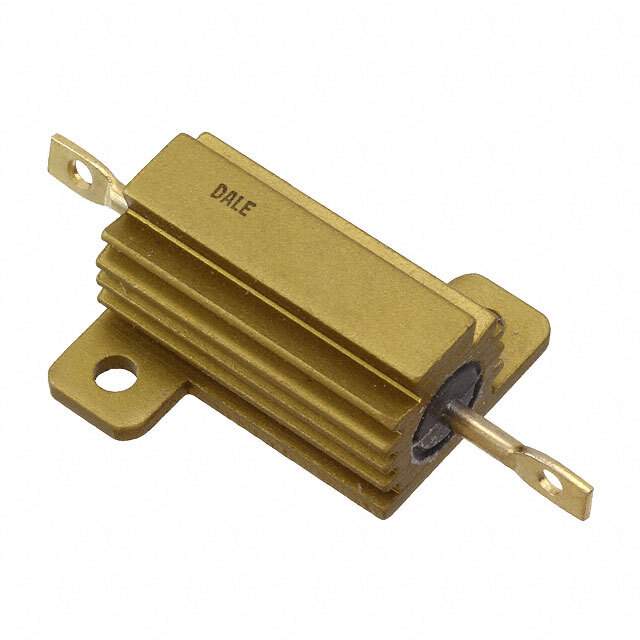

RH0255R000FE02 Real Image
Same model may have multiple batches, images only for reference.

RH0255R000FE02

Part No RH0255R000FE02
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description RES CHAS MNT 5 OHM 1% 25W  /  5 Ohms ±1% 25W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr Vishay Dale
Series RH
Package Bulk
Resistance 5 Ohms
Tolerance ±1%
Power (Watts) 25W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 250°C
Features Moisture Resistant
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 1.062" L x 1.080" W (26.97mm x 27.43mm)
Height - Seated (Max) 0.561" (14.25mm)
Lead Style Solder Lugs
Package / Case Axial, Box
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Other Names 541-RH0255R000FE02
Standard Package 100
Win Source Part Number 1011357-RH0255R000FE02
Ultra Librarian 3D Model Ultra Librarian RH0255R000FE02 CAD Model

Description

The Vishay Dale RH0255R000FE02 is a chassis mount resistor that features a moisture-resistant design.

  • Package: Bulk
  • Standard Package: 100
  • Series: RH
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Lead Style: Solder lugs
  • Power Rating: 25W
  • Mounting: Flanges
  • Composition: Wirewound
  • Resistance: 5 ohms
  • Coating/Housing: Aluminum
  • Operating Temperature: -55°C to 250°C
  • Dimensions: 1.062" L x 1.080" W (26.97mm x 27.43mm)
  • ECCN: EAR99
  • HTSUS: 8533.29.0000
  • Mfr: Vishay Dale
  • Other Names: 541-RH0255R000FE02
