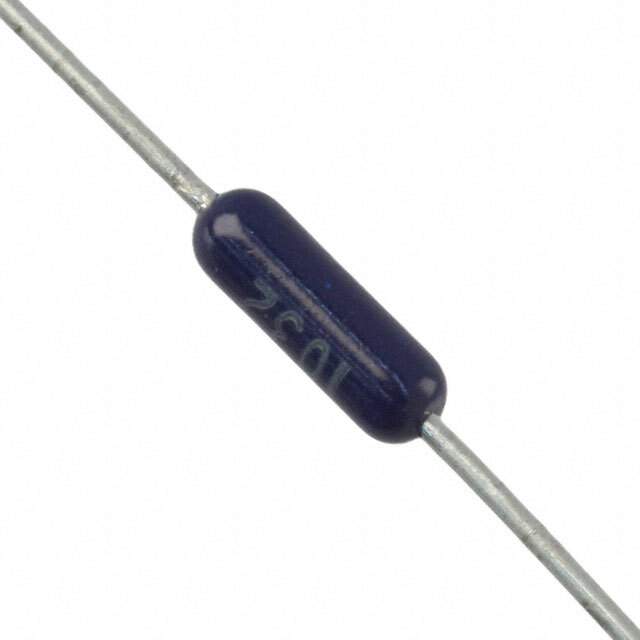

Same model may have multiple batches, images only for reference.

PTF561K0000FZEB

Name: PTF561K0000FZEB
Brand: Vishay
SKU: 1130252
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTF561K0000FZEB
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 1K OHM 1/8W 1% AXIAL / 1 kOhms ±1% 0.125W, 1/8W Through Hole Resistor Axial Moisture Resistant Metal Film
Datasheet	PTF561K0000FZEB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Through Hole Resistors
Mfr	Vishay Dale
Series	PTF
Package	Tape & Reel (TR),Cut Tape (CT)
Resistance	1 kOhms
Tolerance	±1%
Power (Watts)	0.125W, 1/8W
Composition	Metal Film
Features	Moisture Resistant
Temperature Coefficient	±5ppm/°C
Temperature Range - Operating	-55°C ~ 150°C
Package / Case	Axial
Supplier Device Package	Axial
Dimension	0.091" Dia x 0.250" L (2.31mm x 6.35mm)
Number of Terminations	2
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8533.21.0090
Other Names	PTF1.00KBCT,PTF1.00KBTR
Standard Package	1,000
Win Source Part Number	1130252-PTF561K0000FZEB
Ultra Librarian 3D Model	Ultra Librarian PTF561K0000FZEB CAD Model

Alternative Products

Description

The Vishay Dale PTF series resistor is a moisture-resistant metal film resistor with a resistance of 1 kOhms and a tolerance of ±1%.

Resistance: 1 kOhms
Tolerance: ±1%
Temperature Coefficient: ±5ppm/°C
Operating Temperature: -55°C ~ 150°C
Package: Axial
Dimension: 0.091" Dia x 0.250" L (2.31mm x 6.35mm)
Terminations: 2
Available Package: Tape & Reel (TR) and Cut Tape (CT)
Failure Rate: Not Specified
Power Rating: 0.125W, 1/8W
Application: Through-Hole
