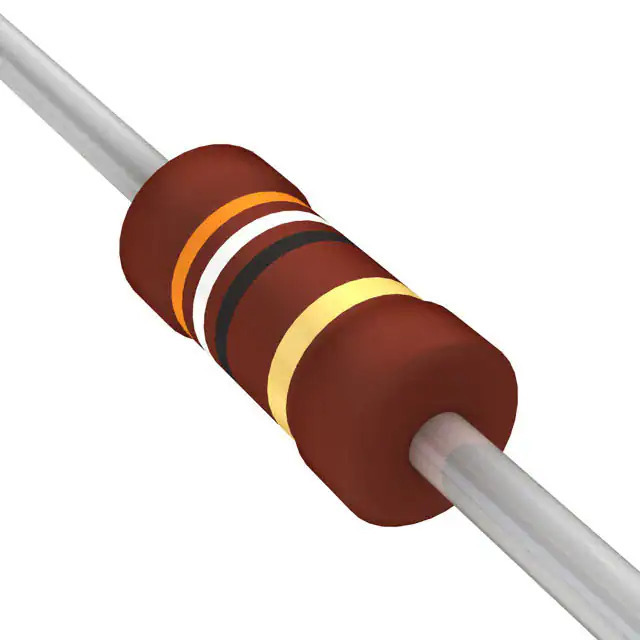

Same model may have multiple batches, images only for reference.

PR01000103909JR500

Name: PR01000103909JR500
Brand: Vishay
SKU: 1374600
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PR01000103909JR500
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 39 OHM 1W 5% AXIAL
Datasheet	PR01000103909JR500 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors - Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	PR01
Package	Tape & Reel (TR)
Product Status	Active
Resistance	39 Ohms
Tolerance	±5%
Power (Watts)	1W
Composition	Metal Film
Features	Automotive AEC-Q200, Flame Retardant Coating, Fusible, Safety
Temperature Coefficient	±250ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Height - Seated (Max)	-
Number of Terminations	2
Failure Rate	-
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Win Source Part Number	1374600-PR01000103909JR500
Ultra Librarian 3D Model	Ultra Librarian PR01000103909JR500 CAD Model

Alternative Products

Description

The PR01 series resistor is a through-hole resistor with a resistance of 39 Ohms and a power rating of 1W.

Series: Vishay Beyschlag/Draloric/BC Components PR01
Mounting Type: Through Hole
Resistance: 39 Ohms
Power Rating: 1W
Composition: Metal Film
Tolerance: ±5%
Temperature Coefficient: ±250ppm/°C
Operating Temperature: -55°C to 155°C
Application: Automotive AEC-Q200, Flame Retardant Coating, Safety
Package/Case: Axial
Terminations: 2
Packaging: Tape and Reel
REACH Compliant: Yes
ECCN: EAR99
