Products specifications

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 45A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 22.5A
Current - Reverse Leakage @ Vr 10μA @ 800V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, PB
Manufacturer Package isoCINK+ PB
Win Source Part Number 791379-PB5008-E3/45
Popularity Medium
Supply and Demand Status Limited
Family Name PB5008
Introduction Date September 25, 2009
ECCN EAR99
Halogen Free Not Compliant
Estimated EOL Date 2033
Ultra Librarian 3D Model Ultra Librarian PB5008-E3/45 CAD Model

Description

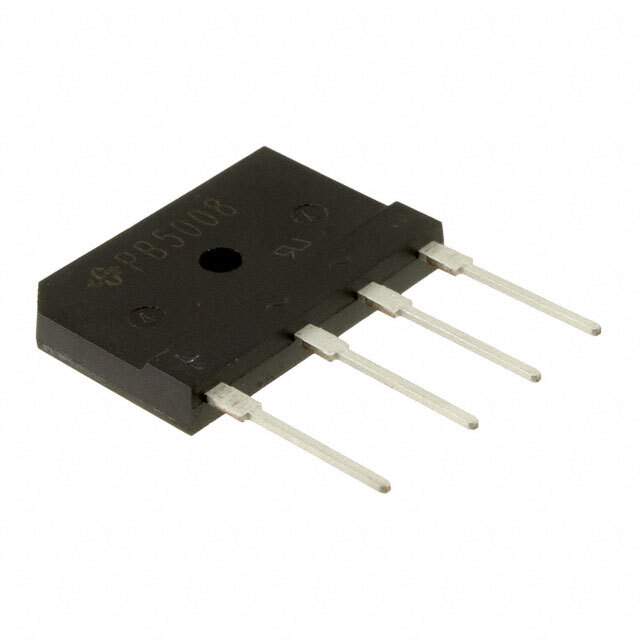

The Vishay Semiconductor Diodes Division PB5008-E3/45 is a standard single-phase diode with a peak reverse voltage of 800V and an average rectified current of 45A. The maximum forward voltage (Vf) is 1.1V @ 22.5A, while the maximum reverse leakage current is 10μA @ 800V. The through-hole package is 4-SIP, PB, with an operating temperature range of -55°C ~ 150°C (TJ). The diode is ECCN: EAR99 and has an estimated EOL date of 2033.

  • Peak Reverse Voltage: 800V
  • Average Rectified Current: 45A
  • Forward Voltage (Vf): 1.1V @ 22.5A
  • Reverse Leakage Current: 10μA @ 800V
  • Package: 4-SIP, PB
  • Operating Temperature: -55°C ~ 150°C (TJ)
