Same model may have multiple batches, images only for reference.

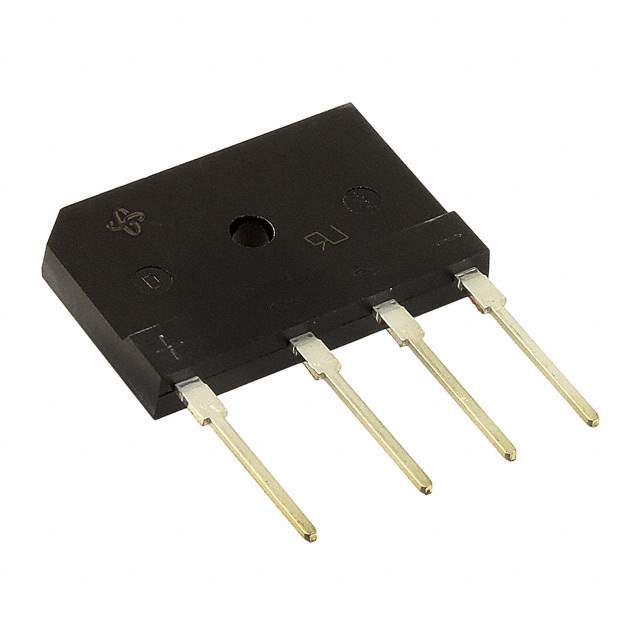

PB3510-E3/45 Real Image
Same model may have multiple batches, images only for reference.

PB3510-E3/45

Part No PB3510-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 1000V 35A PB / Diode Rectifier Bridge Single 1KV 4.2A 4-Pin Case PB Tube
Datasheet
PB3510-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1000V
Current - Average Rectified (Io) 35A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 17.5A
Current - Reverse Leakage @ Vr 10μA @ 1000V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, PB
Manufacturer Package isoCINK+ PB
Win Source Part Number 791377-PB3510-E3/45
Popularity Medium
Supply and Demand Status Limited
Family Name PB3510
Introduction Date September 25, 2009
ECCN EAR99
Estimated EOL Date 2033
Ultra Librarian 3D Model Ultra Librarian PB3510-E3/45 CAD Model

Description

The Vishay Semiconductor Diodes Division PB3510-E3/45 is a single-phase diode. It has an average rectified current of 35A and a voltage rating of 1000V. The Vishay Semiconductor Diodes Division PB3510-E3/45 has a reverse leakage current of 10μA @ 1000V and a forward voltage of 1.1V @ 17.5A. It is mounted using through-hole technology and has a 4-SIP, PB package. The Vishay Semiconductor Diodes Division PB3510-E3/45 has an operating temperature range of -55°C to 150°C and is part of the PB3510 family. It has a medium popularity and a limited supply and demand status.

  • Average Rectified Current: 35A
  • Voltage Rating: 1000V
  • Reverse Leakage Current: 10μA @ 1000V
  • Forward Voltage: 1.1V @ 17.5A
  • Package: 4-SIP, PB
  • Mounting: Through Hole
  • Operating Temperature: -55°C to 150°C
