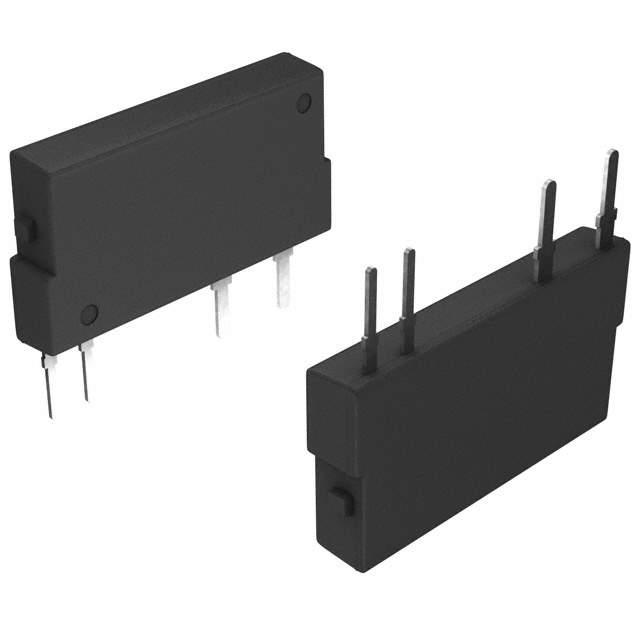

AQZ207 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube
Mounting Style Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Parts Input Voltage (V) 1.16VDC
Load Voltage (V) 0V ~ 200V
Load Current 1A
On-State Resistance (Maximum) 1.1 Ohms
Termination Style PC Pin
Manufacturer Package 4-SIP
Supplier Device Package 4-SIL
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 729594-AQZ207
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AQZ207 CAD Model

Description

The AQZ207 is a relay manufactured by Panasonic Electric Works.

  • Package: Tube
  • Manufacturer Pack Quantity: 25
  • Load Current: 1A
  • Load Voltage: 200V
  • Termination: PC Pin
  • Mounting: Through Hole
  • Circuit: SPST-NO (1 Form A)
  • On-State Resistance: 1.1 Ohms
  • Output Type: AC/DC
  • Series: 4-SIL
  • MSL Level: 1 (Unlimited)
  • Input Voltage: 1.16VDC
