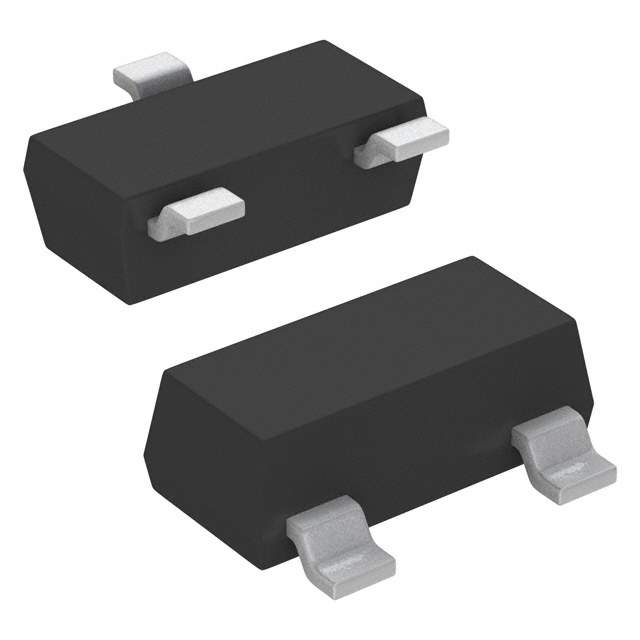

Same model may have multiple batches, images only for reference.

MPM2002AT1

Name: MPM2002AT1
Brand: Vishay
SKU: 1328286
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MPM2002AT1
Manufacturer	Vishay
Catalog	Resistor Networks, Arrays
Description	RES NTWRK 2 RES 10K OHM TO236-3 / 10k Ohm ±0.1% 100mW Power Per Element Voltage Divider 2 Resistor Network/Array ±25ppm/°C TO-236-3, SC-59, SOT-23-3
Datasheet	MPM2002AT1 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Resistor Networks, Arrays
Manufacturer	Vishay Dale Thin Film
Packaging	Reel - TR
Circuit Type	Voltage Divider
Resistance (Ohms)	10k
Tolerance	±0.1%
Number of Resistors	2
Resistor Matching Ratio	±0.05%
Resistor-Ratio-Drift	±2ppm/°C
Number of Pins	3
Power Per Element	100mW
Temperature Coefficient	±25ppm/°C
Temperature Range - Operating	-55°C ~ 125°C
Applications	Voltage Divider (TCR Matched)
Mounting	Surface Mount
Case / Package	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23
Size / Dimension	0.113" L x 0.051" W (2.86mm x 1.30mm)
Height - Seated (Max)	0.040" (1.02mm)
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0020
Other Part Number	764-MPM2002AT1DKR,764-MPM2002AT1TR,MPM2002AT1-ND,764-MPM2002AT1CT
Standard Package	1,000
Win Source Part Number	1328286-MPM2002AT1
Ultra Librarian 3D Model	Ultra Librarian MPM2002AT1 CAD Model

Alternative Products

Description

The MPM2002AT1 resistor network from Vishay Dale Thin Film is a high-quality and reliable component that is ideal for use in a wide range of electronic applications.

Resistance: 10kΩ
Tolerance: ±0.1%
Application: Voltage divider circuits
Temperature Coefficient: ±25ppm/°C
Package: SOT-23
Height: 0.040"
Resistor Matching Ratio: ±0.05%
Resistor-Ratio-Drift: ±2ppm/°C
Packaging: Reel
Standard Package: 1,000
ECCN: EAR99
REACH: Unaffected
HTSUS: 8533.21.0020
