Same model may have multiple batches, images only for reference.

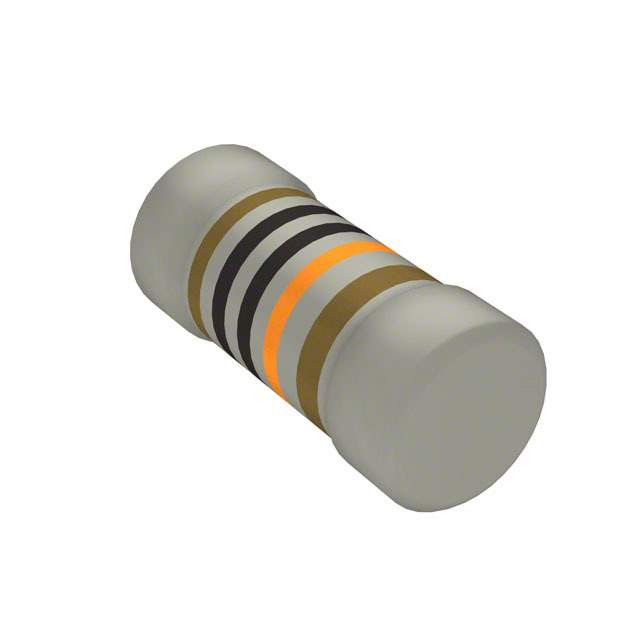

MMU01020C6801FB300 Real Image
Same model may have multiple batches, images only for reference.

MMU01020C6801FB300

Part No MMU01020C6801FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 6.8K OHM 1% 0.3W 0102  /  6.8 kOhms ±1% 0.3W Chip Resistor MELF, 0102 Anti-Sulfur, Automotive AEC-Q200 Thin Film
Datasheet
MMU01020C6801FB300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series MMU - Professional
Package Tape & Reel
Resistance 6.8 kOhms
Tolerance ±1%
Power (Watts) 0.3W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case MELF, 0102
Supplier Device Package 0102
Ratings AEC-Q200
Dimension 0.043" Dia x 0.087" L (1.10mm x 2.20mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Names MMU-6.80KCDKR,MMU-6.80KCCT,MMU-6.80KCTR
Standard Package 3,000
Win Source Part Number 979098-MMU01020C6801FB300
Ultra Librarian 3D Model Ultra Librarian MMU01020C6801FB300 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components MMU01020C6801FB300 is a chip resistor that is designed for surface mount applications.

  • Resistance: 6.8 kOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Power Rating: 0.3W
  • AEC-Q200: Yes
  • Package / Case: MELF, 0102
  • Number of Terminations: 2
  • Operating Temperature: -55°C ~ 155°C
  • Composition: Thin Film
  • Features: Anti-Sulfur, Automotive AEC-Q200
