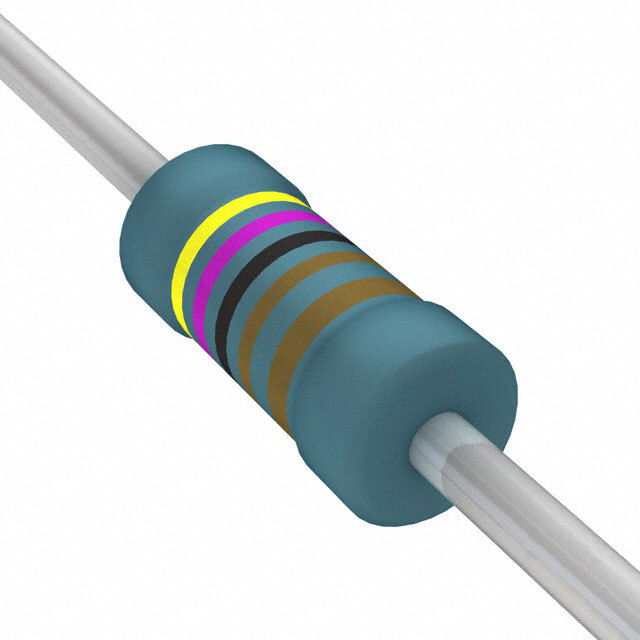

MBA02040C5603FRP00 Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MBA02040C5603FRP00

Part No MBA02040C5603FRP00
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 560K OHM 0.4W 1% AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance 560 kOhms
Tolerance ±1%
Power (Watts) 0.4W
Composition Metal Film
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package Axial
Size / Dimension 0.063" Dia x 0.142" L (1.60mm x 3.60mm)
Number of Terminations 2
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1584252-MBA02040C5603FRP00
Ultra Librarian 3D Model Ultra Librarian MBA02040C5603FRP00 CAD Model

Description

N
