Same model may have multiple batches, images only for reference.

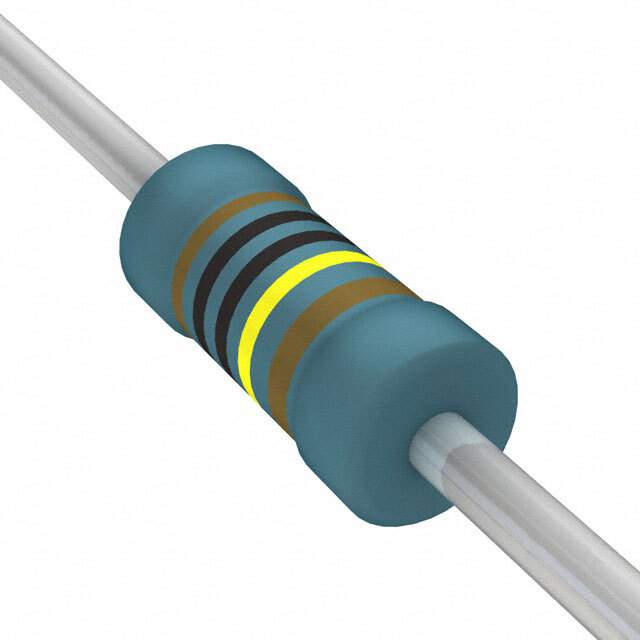

MBA02040C1009FRP00 Real Image
Same model may have multiple batches, images only for reference.

MBA02040C1009FRP00

Part No MBA02040C1009FRP00
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 10 OHM 0.4W 1% AXIAL / 10 Ohms ±1% 0.4W Through Hole Resistor Axial Automotive AEC-Q200 Metal Film
Datasheet
MBA02040C1009FRP00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Vishay
Series MBA/SMA 0204 - Professional
Package Tape & Reel
Resistance 10 Ohms
Tolerance ±1%
Power (Watts) 0.4W
Composition Metal Film
Features Automotive AEC-Q200
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package -
Size / Dimension 0.063" Dia x 0.142" L (1.60mm x 3.60mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Standard Package 5,000 pcs
Win Source Part Number 1380876-MBA02040C1009FRP00
Ultra Librarian 3D Model Ultra Librarian MBA02040C1009FRP00 CAD Model

Description

The 1198012 is a through-hole resistor from Vishay.

  • Series: MBA/SMA 0204 - Professional
  • Application: Automotive applications
  • Size/Dimension: 0.063" Dia x 0.142" L (1.60mm x 3.60mm)
  • Power Rating: 0.4W
  • Resistance: 10 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Temperature Range: -55°C to 155°C
  • Composition: Metal Film
  • Package/Case: Axial
  • Packaging: Tape & reel
  • Standard Package Quantity: 5,000 pcs
