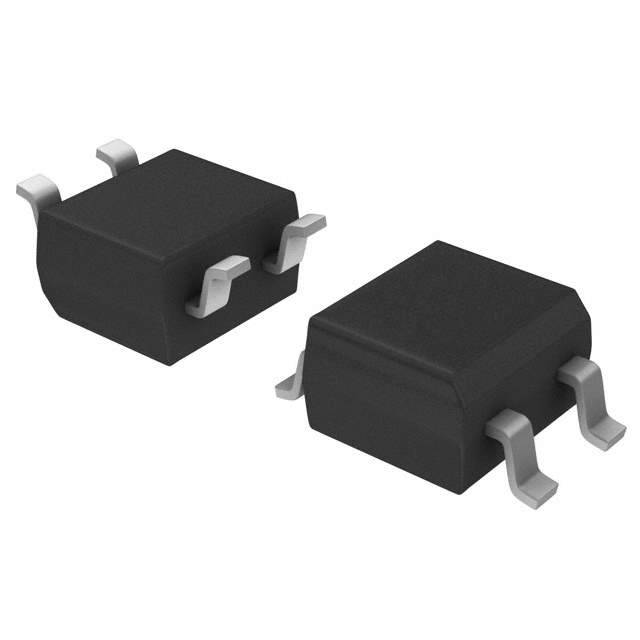

MB2S-E3/45 Real Image
Same model may have multiple batches, images only for reference.

MB2S-E3/45

Part No MB2S-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 200V TO269AA  /  Bridge Rectifier Single Phase Standard 200 V Surface Mount TO-269AA (MBS)
Datasheet
MB2S-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Package Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200 V
Current - Average Rectified (Io) 500 mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 400 mA
Current - Reverse Leakage @ Vr 5 µA @ 200 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case TO-269AA, 4-BESOP
Supplier Device Package TO-269AA (MBS)
Base Product Number MB2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names MB2S-E3/1,MB2S-E3/1GI-ND,MB2S-E3/45GI,MB2S-E3/1GI,MB2SE345
Standard Package 100
Win Source Part Number 1013231-MB2S-E3/45
Ultra Librarian 3D Model Ultra Librarian MB2S-E3/45 CAD Model

Description

The MB2S-E3/45 is a surface mount, single-phase, standard technology bridge rectifier from Vishay General Semiconductor - Diodes Division.

  • Current Average Rectified (Io): 500mA
  • Voltage Forward (Vf) (Max) @ If: 1V @ 400mA
  • Current Reverse Leakage @ Vr: 5µA @ 200V
  • Voltage Peak Reverse (Max): 200V
  • Operating Temperature: -55°C to 150°C (TJ)
  • REACH: Unaffected
  • Packaging: Tube
  • Standard Package: 100
  • Mounting: SMD (SMT)
  • Package / Case: TO-269AA, 4-BESOP
