Products specifications Report Issue?

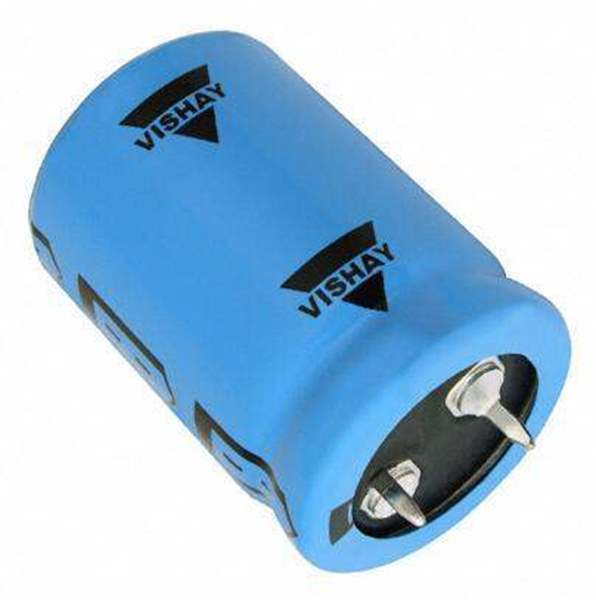

Manufacturer Vishay Beyschlag/Draloric/BC Components
Category Capacitors Aluminum Electrolytic Capacitors
Packaging  Bulk
Part Status Active
Capacitance 22000 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 30mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature -40°C ~ 105°C
Ripple Current @ High Frequency 3.324 A @ 10 kHz
Size / Dimension 0.984" Dia (25.00mm)
Lead Spacing 0.394" (10.00mm)
Win Source Part Number WS1307315-MAL225635223E3
Ultra Librarian 3D Model Ultra Librarian MAL225635223E3 CAD Model

Description

22000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 30mOhm 2000 Hrs @ 105°C
