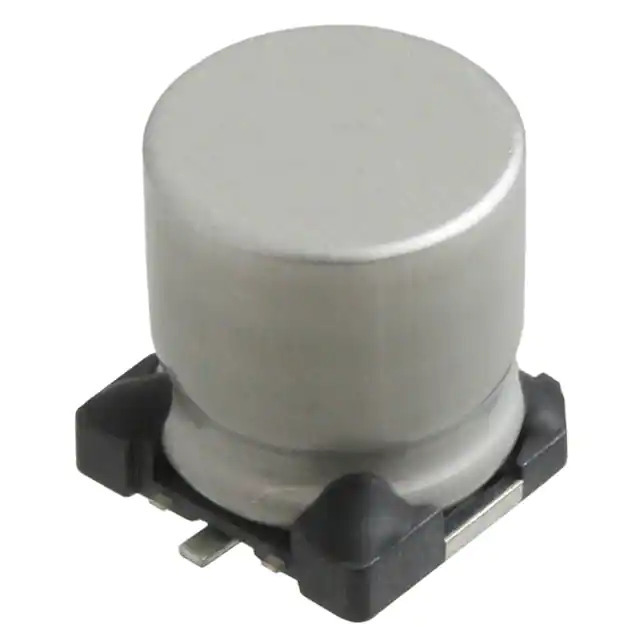

Same model may have multiple batches, images only for reference.

MAL215099003E3

Name: MAL215099003E3
Brand: Vishay
SKU: 1360371
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MAL215099003E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 35V SMD / 330 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C
Datasheet	MAL215099003E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	150 CRZ
Package	Tape & Reel (TR)
Product Status	Active
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	513.5 mA @ 100 Hz
Impedance	120 mOhms
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.591" (15.00mm)
Surface Mount Land Size	0.394" L x 0.394" W (10.00mm x 10.00mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360371-MAL215099003E3
Ultra Librarian 3D Model	Ultra Librarian MAL215099003E3 CAD Model

Description

The MAL215099003E3 is an aluminum electrolytic capacitor from Vishay Beyschlag/Draloric/BC Components.

Capacitance: 330µF
Voltage Rating: 35V
Tolerance: ±20%
Temperature Range: -55°C to 105°C
Mounting Type: Surface Mount
Package: Radial, Can - SMD
Polarized: Yes
Impedance: 120mOhms
Application: Automotive
Standard: AEC-Q200
