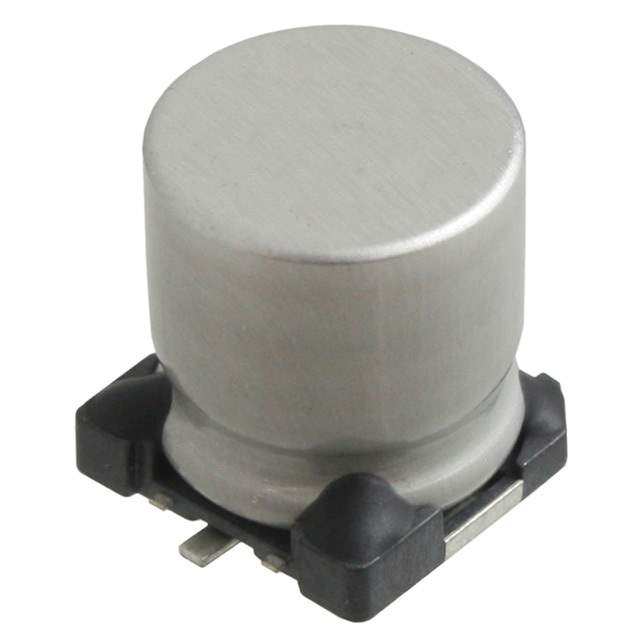

MAL215097701E3 Real Image1 MAL215097701E3 Real Image2
Same model may have multiple batches, images only for reference.
MAL215097701E3 Real Image1 MAL215097701E3 Real Image2
MAL215097701E3 Real Image1 MAL215097701E3 Real Image2
Same model may have multiple batches, images only for reference.

MAL215097701E3

Part No MAL215097701E3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 80V SMD / 47 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C
Datasheet
MAL215097701E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Vishay
Series 150 CRZ
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 80 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Impedance 800 mOhms
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.394" L x 0.394" W (10.00mm x 10.00mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 500 pcs
Win Source Part Number 1382730-MAL215097701E3
Ultra Librarian 3D Model Ultra Librarian MAL215097701E3 CAD Model

Description

The MAL215097701E3 is an aluminum electrolytic capacitor designed for automotive applications. It belongs to the Aluminum Electrolytic Capacitors category of electronic components.

  • Capacitance: 47μF
  • Tolerance: ±20%
  • Voltage: 80V
  • Height: 10.50mm
  • Lifetime: 3000 hours @ 105°C
  • Mounting Type: Surface Mount
  • Package: Radial, Can - SMD
  • Manufacturer: Vishay
  • REACH: Not Affected
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
