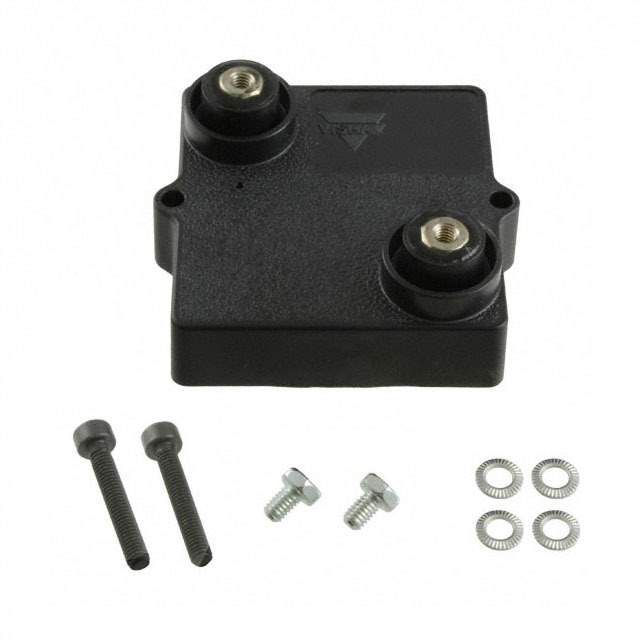

LPS1100H10R0JB Real Image
Same model may have multiple batches, images only for reference.

LPS1100H10R0JB

Part No LPS1100H10R0JB
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description RES CHAS MNT 10 OHM 5% 1100W / 10 Ohms ±5% 1100W Thick Film Chassis Mount Resistor
Datasheet
LPS1100H10R0JB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr Vishay Sfernice
Series LPS 1100
Package Bulk
Resistance 10 Ohms
Tolerance ±5%
Power (Watts) 1100W
Composition Thick Film
Temperature Coefficient ±300ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Features Non-Inductive
Mounting Feature Flanges
Dimension 2.362" L x 2.244" W (60.00mm x 57.00mm)
Height - Seated (Max) 1.055" (26.80mm)
Lead Style M4 Threaded
Package / Case Box
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Other Names LPS-10.0D
Standard Package 15
Win Source Part Number 1070686-LPS1100H10R0JB
Ultra Librarian 3D Model Ultra Librarian LPS1100H10R0JB CAD Model

Description

The LPS1100H10R0JB is a chassis mount resistor manufactured by Vishay Sfernice.

  • Type: non-inductive thick film resistor
  • Power Rating: 1100W
  • Resistance: 10 Ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±300ppm/°C
  • Operating Temperature Range: -55°C to 200°C
  • Feature: flanged resistor
  • Leads: M4 threaded leads
  • Height: 1.055" (26.80mm)
  • RoHS Compliant: yes
  • Package: bulk
  • Supply and Demand Status: unknown
  • Alternative Parts: RTOP100V10R0JB, D2TO035C10R00JRE3, RTOP200V10R0JB, PWR263S-20-10R0J, ERJ-XGNJ100Y, and RK73B1JTTD100JLPS1100H10R0JB
