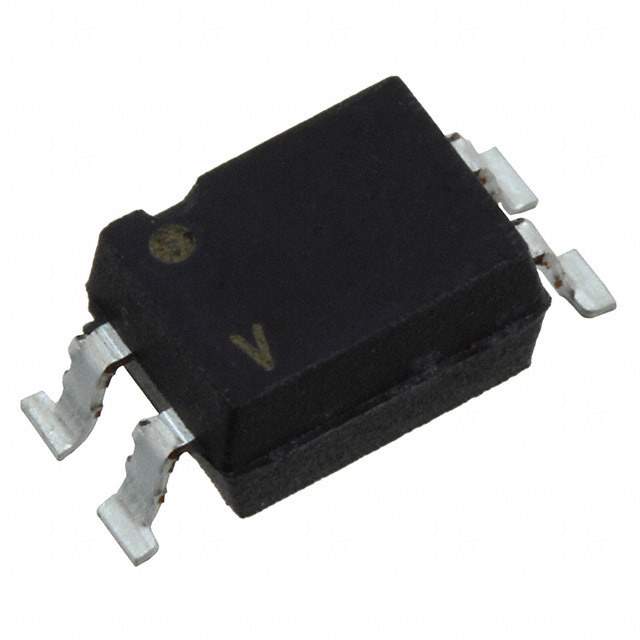

LH1546ADF Real Image LH1546ADF Real Image
LH1546ADF Real Image LH1546ADF Real Image
Same model may have multiple batches, images only for reference.

LH1546ADF

Part No LH1546ADF
Manufacturer Vishay
Catalog Solid State Relays
Description 1 Form A Solid-State Relay
Datasheet
LH1546ADF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay Semiconductor Opto Division
Series LH1546
Packaging Tube
Circuit SPST-NO (1 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 28 Ohm
Load Current 120mA
Voltage - Input 1.2VDC
Voltage - Load 0 ~ 350 V
Mounting SMD
Termination Style Gull Wing
Package 4-SMD (0.300", 7.62mm)
Manufacturer Package 4-SMD
Relay Type Relay
Win Source Part Number 1196417-LH1546ADF
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian LH1546ADF CAD Model

Description

The Vishay Semiconductor Opto Division LH1546ADF is a relay that operates with an input voltage of 1.2VDC and has an output type of AC, DC.

  • Circuit: SPST-NO (1 Form A)
  • Load Current: 120mA
  • Voltage Load: 0 ~ 350 V
  • Package: 4-SMD (0.300", 7.62mm)
  • Termination Style: gull-wing
  • Maximum On-State Resistance: 28 Ohm
  • Cross-Reference: AQY210EHAJ, AQY280EHAX, and AQY280EHAZ
  • Manufacturer Homepage: www.vishay.com
