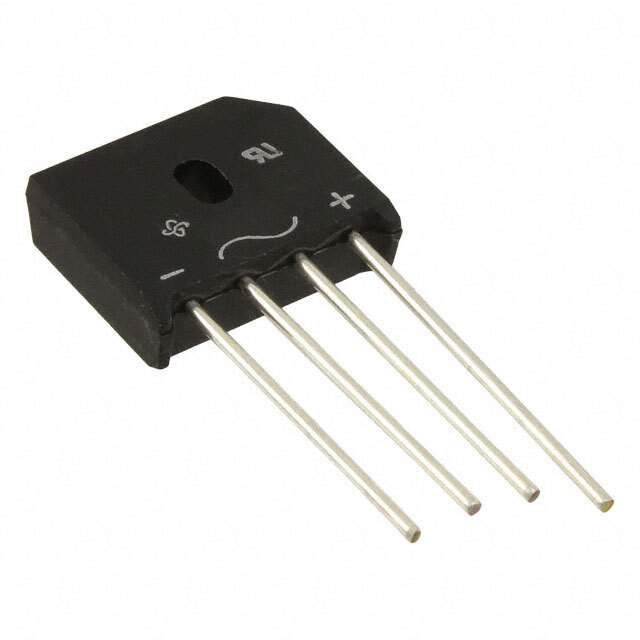

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 200V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Maximum) @ If 1V @ 8A
Current - Reverse Leakage @ Vr 10μA @ 200V
Operating Temperature Range -50°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, KBU
Manufacturer Package KBU
Win Source Part Number 777991-KBU8D-E4/51
Popularity Medium
Supply and Demand Status Balance
Family Name KBU8D
Introduction Date June 18, 1998
ECCN EAR99
Country of Origin China
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian KBU8D-E4/51 CAD Model

Description

The Vishay Semiconductor Diodes Division KBU8D-E4/51 is a single-phase standard diode. The specifications are as follows:

  • Voltage Rating: 200V
  • Average Rectified Current: 8A
  • Package: 4-SIP KBU
  • Operating Temperature: -50°C to 150°C
  • Reverse Leakage Current @ 200V: 10μA
  • Forward Voltage @ 8A: 1V
  • Family: KBU8D
  • Category: Discrete Semiconductor Products
  • Manufacturing Location: China
  • Estimated EOL Date: 2031
