Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 1V @ 4A
Current - Reverse Leakage @ Vr 5μA @ 600V
Temperature Range - Operating -50°C to 150°C (TJ)
Mounting Through Hole
Case / Package KBU
Win Source Part Number 002147-KBU4J-E4/51
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian KBU4J-E4/51 CAD Model

Description

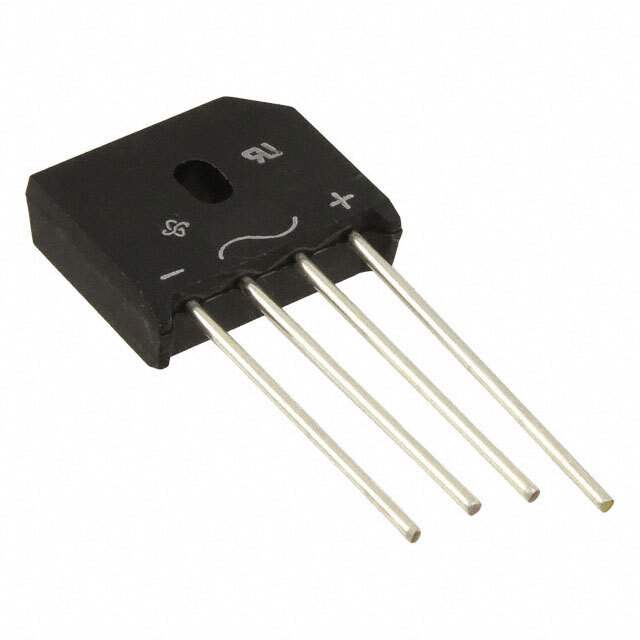

The Vishay 176061 is a single-phase diode with a maximum peak reverse voltage of 600V.

  • Average Rectified Current: 4A
  • Forward Voltage: 1V @ 4A
  • Reverse Leakage Current: 5μA @ 600V
  • Mounting: through-hole mountable
  • Package: KBU
  • Temperature Range: -50°C to 150°C
  • Ideal for: discrete semiconductor products
  • Supply and Demand Status: limited
