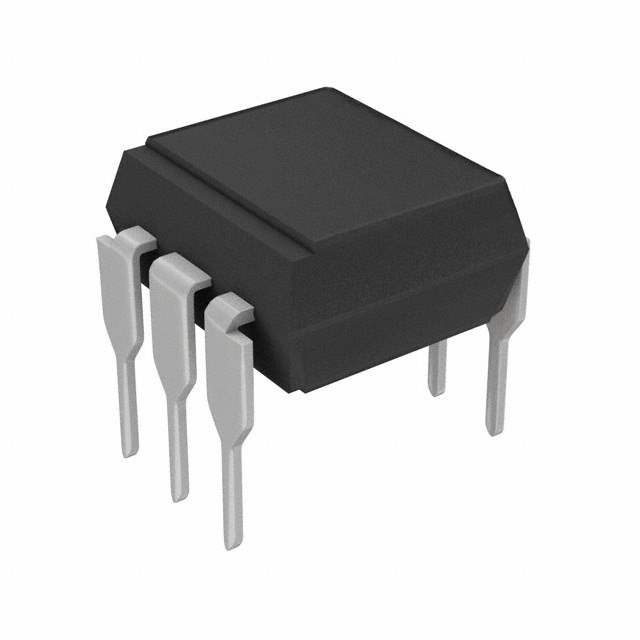

K3022P Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 5300Vrms
Voltage - Off State 400V
Static dV/dt (Min) 10V/μs (Typ)
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 200μA (Typ)
Forward Voltage 1.3V
Continuous forward current- Max 80mA
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Approvals BSI, CQC, CSA, cUR, UR, VDE
Win Source Part Number 070349-K3022P
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian K3022P CAD Model

Description

The Vishay 070349-K3022P is a through-hole triac with a voltage-off state of 400V and a forward voltage of 1.3V.

  • Maximum Current-on State: 100mA
  • Minimum Static dV/dt: 10V/μs
  • Number of Channels: 1
  • Isolation Voltage: 5300Vrms
  • Approvals: BSI, CQC, CSA, cUR, UR, and VDE
  • Supply and Demand Status: balanced
  • Category: isolator
  • Operating Temperature Range: -55°C to 100°C
  • Case/Package: 6-DIP
