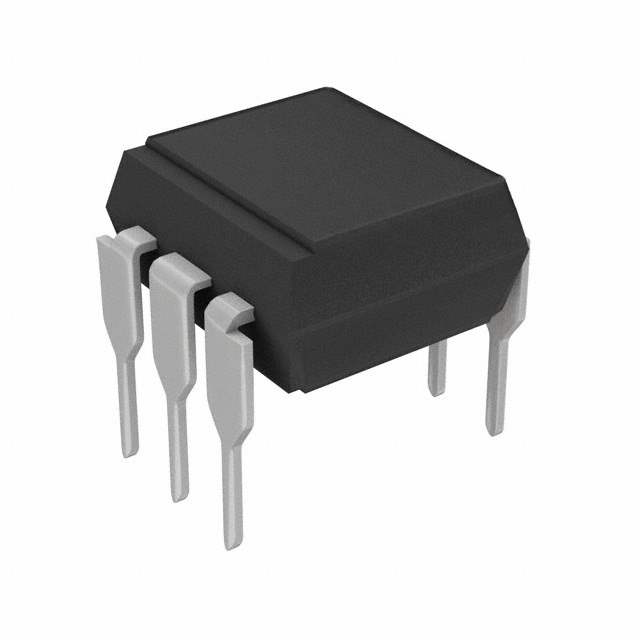

K3012P Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 5300Vrms
Voltage - Off State 250V
Static dV/dt (Min) 10kV/μs (Typ)
Current - LED Trigger (Ift) (Max) 5mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 100μA (Typ)
Forward Voltage 1.25V
Continuous forward current- Max 80mA
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Approvals BSI, CQC, UR, VDE
Win Source Part Number 018156-K3012P
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian K3012P CAD Model

Description

The Vishay K3012P is a 6-DIP triac output type optoisolator with an isolation voltage of 5300Vrms.

  • Forward voltage: 1.25V
  • Off-state voltage: 250V
  • Maximum current on state: 100mA
  • Current hold: 100μA (Typ)
  • Static dV/dt: 10kV/μs (Typ)
  • Current LED trigger: 5mA (Max)
  • Temperature range: -55 degrees Celsius to 100 degrees Celsius
  • Status: active in the market
  • Alternative parts: MOC3010X, K3011P, K3010P, and K3012P
