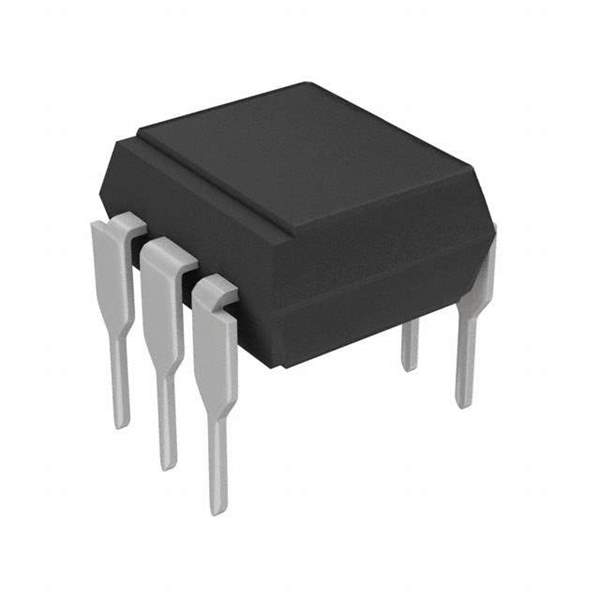

IL4218 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 5300Vrms
Voltage - Off State 800V
Static dV/dt (Min) 10kV/μs
Current - LED Trigger (Ift) (Max) 700μA (Typ)
Current - On State (It (RMS)) (Max) 300mA
Current - Hold (Ih) 200μA
Forward Voltage 1.3V
Continuous forward current- Max 60mA
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Approvals BSI, CSA, cUR, FIMKO, UR
Win Source Part Number 1045326-IL4218
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IL4218 CAD Model

Description

The Vishay IL4218 is a through-hole mounted Triac output type optocoupler with a maximum off-state voltage of 800V and a maximum on-state current of 300mA.

  • Channels: 1
  • Isolation Voltage: 5300Vrms
  • LED Trigger Current: 700μA (Typ)
  • Hold Current: 200μA
  • Static dV/dt (Min): 10kV/μs
  • Package: 6-DIP
  • Continuous Forward Current: 60mA
  • Operating Temperature Range: -55°C to 100°C
  • Approvals: BSI, CSA, cUR, FIMKO, and UR
