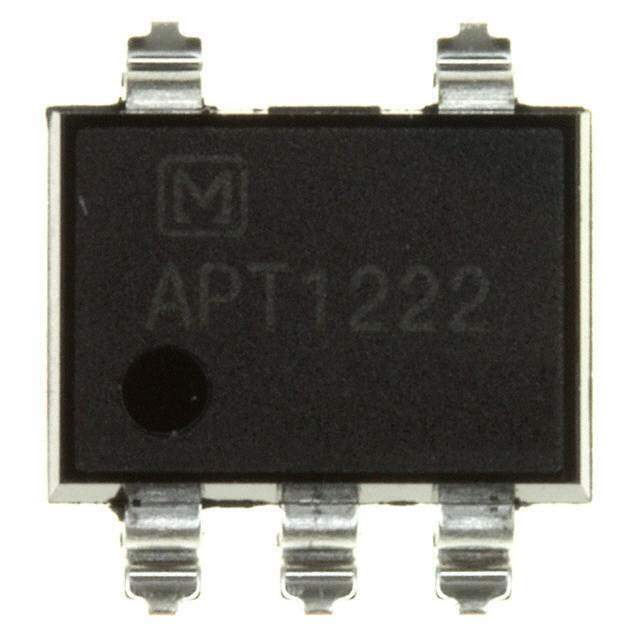

APT1212AX Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Panasonic Electric Works
Packaging Reel package
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 600V
Static dV/dt (Minimum) 500V/μs
Current - LED Trigger (Ift) (Maximum) 10mA
Current - On State (It (RMS)) (Maximum) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 100μs (Maximum)
Voltage - Forward (Vf) (Typ) 1.21V
Current - DC Forward (If) (Maximum) 50mA
Operating Temperature Range -40°C ~ 100°C
Mounting Style Through Hole
Package 6-DIP (0.300", 7.62mm), 5 Leads
Manufacturer Package 6-DIP
Approvals cUR, VDE
Win Source Part Number 768667-APT1212AX
Popularity Medium
Supply and Demand Status Limited
Family Name APT1212
Introduction Date May 01, 2006
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian APT1212AX CAD Model

Description

The Panasonic Electric Works electronic component is a triac with a medium popularity in the market.

  • Win Source Part Number: 768667-APT1212AX
  • Mounting Type: Through-hole
  • Operating Temperature Range: -40°C to 100°C
  • Channels: 1
  • Voltage-off State: 600V
  • Package: 6-DIP (0.300", 7.62mm), 5 Leads
  • Approvals: cUR, VDE
  • Voltage-Isolation: 5000Vrms
  • Current-Hold: 3.5mA
  • Zero-Crossing Circuit: Available
  • Turn-on Time (Maximum): 100μs
