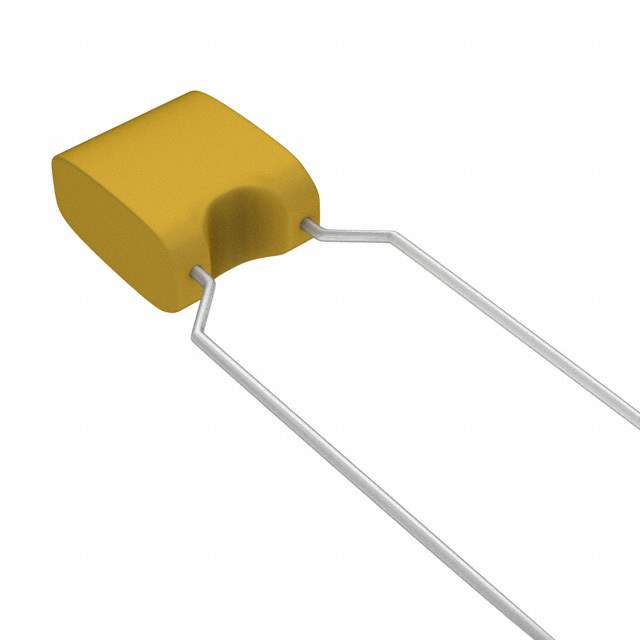

K220J15C0GF5UH5 Real Image
Same model may have multiple batches, images only for reference.

K220J15C0GF5UH5

Part No K220J15C0GF5UH5
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 22PF 50V C0G/NP0 RADIAL
Datasheet
K220J15C0GF5UH5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging AMMO PACKAGE
Status Active
Capacitance 22pF
Tolerance ±5%
Voltage Rating 50V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C to 125°C
Applications General Purpose
Mounting Through Hole
Dimension 0.157" L x 0.098" W (4.00mm x 2.50mm)
Height - Seated (Max) 0.100" (2.54mm)
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads
Win Source Part Number 1050337-K220J15C0GF5UH5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian K220J15C0GF5UH5 CAD Model

Description

This Vishay capacitor has a voltage rating of 50V and a capacitance of 22pF.

  • Voltage Rating: 50V
  • Capacitance: 22pF
  • Seated Height: 0.100" (2.54mm)
  • Mounting: Through-Hole
  • Tolerance: ±5%
  • Temperature Coefficient: C0G, NP0
  • Lead Spacing: 0.197" (5.00mm)
  • Lead Style: Formed Leads
  • Dimension: 0.157" L x 0.098" W (4.00mm x 2.50mm)
  • Status: Active
  • Operating Temperature: -55°C to 125°C
  • Supply and Demand Status: Balance
