The Vishay Siliconix MOSFET is a P-channel transistor with a maximum drain-source breakdown voltage of 50V and a continuous drain current of 9.9A.

• Transistor Type: P-channel
• Maximum Drain-Source Breakdown Voltage: 50V
• Continuous Drain Current: 9.9A
• Drive Voltage: 10V
• Maximum Rds On: 280mOhm @ 5.7A and 10V
• Gate Charge (Qg): 14nC @ 10V
• Gate-Source Voltage (th): 4V @ 250μA
• Input Capacitance (Ciss): 490pF @ 25V
• Application: discrete semiconductor products
• Power Dissipation: 42W

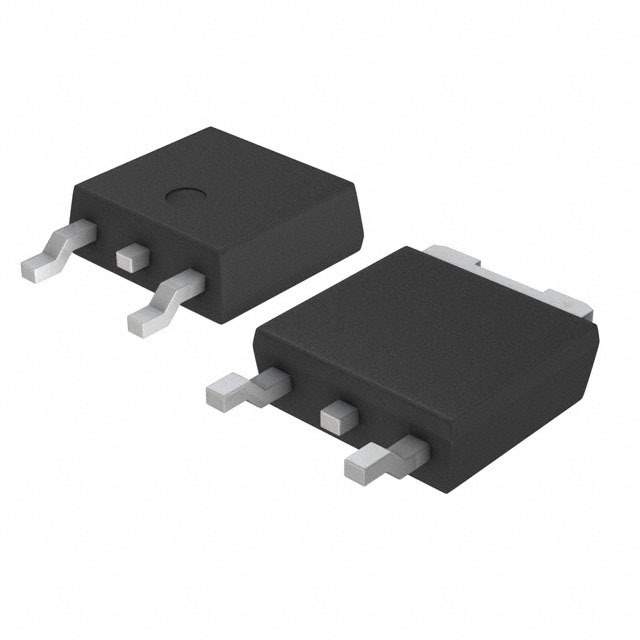

• Package: TO-252-3, DPak (2 Leads + Tab), SC-63
• Popularity: medium
• Supply and Demand Status: balanced
