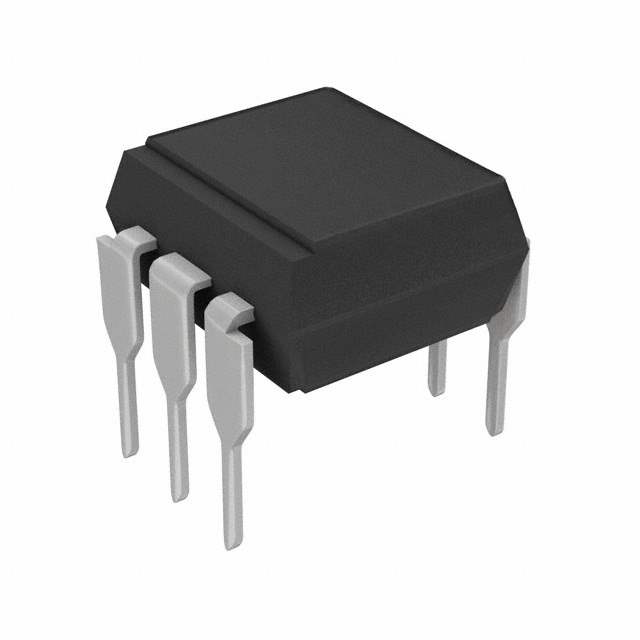

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Reel - TR
Status Active
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 5300Vrms
Voltage - Off State 600V
Static dV/dt (Min) 10kV/μs
Current - LED Trigger (Ift) (Max) 2mA
Current - On State (It (RMS)) (Max) 300mA
Current - Hold (Ih) 500μA
Turn On Time 35μs
Forward Voltage 1.16V
Continuous forward current- Max 60mA
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD
Approvals CQC, CSA, cUR, UR
Win Source Part Number 068807-IL420
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Motor Drive & Control, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian IL420 CAD Model

Description

Vishay IL420 is a single channel triac output type optocoupler that has an isolation voltage of 5300Vrms. It has a voltage off state of 600V and a current on state (It (RMS)) (Max) of 300mA.

  • Isolation Voltage: 5300Vrms
  • Voltage Off State: 600V
  • Current On State (It (RMS)) (Max): 300mA
  • Temperature Range: -55°C to 100°C
  • Continuous Forward Current-Max: 60mA
  • Mounting: SMD (SMT)
  • Package: Reel - TR package
  • Approvals: CQC, CSA, cUR, UR

This optocoupler has CQC, CSA, cUR, UR approvals and is suitable for use in industrial, motor drive & control, and consumer electronics applications. It has a popularity of medium and is an active part of the Isolators category.
