Same model may have multiple batches, images only for reference.

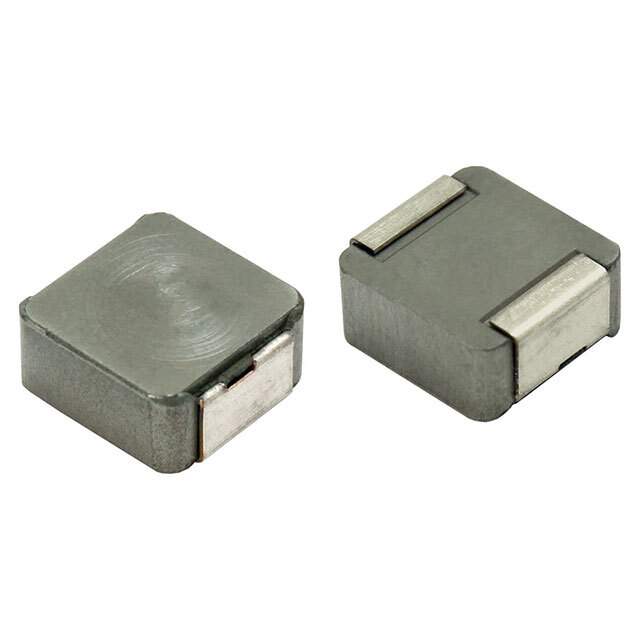

IHLP3232DZER220M1A Real Image
Same model may have multiple batches, images only for reference.

IHLP3232DZER220M1A

Part No IHLP3232DZER220M1A
Manufacturer Vishay
Catalog Fixed Inductors
Description IHLP-3232DZ-1A 22 20% ER E3 / 22 µH Shielded Inductor 4.3 A 89mOhm Max Nonstandard
Datasheet
IHLP3232DZER220M1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Vishay Dale
Packaging Reel - TR
Material - Core Metal Composite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 4.3 A
Current - Saturation (Isat) 3.3A
Shielding Shielded
DC Resistance (DCR) 89mOhm Max
Frequency - Self Resonant 8.2MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Max) 0.157" (4.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 541-IHLP3232DZER220M1ACT,541-IHLP3232DZER220M1ADKR,541-IHLP3232DZER220M1ATR
Standard Package 500
Win Source Part Number 1329328-IHLP3232DZER220M1A
Ultra Librarian 3D Model Ultra Librarian IHLP3232DZER220M1A CAD Model

Description

The IHLP3232DZER220M1A is a shielded inductor manufactured by Vishay Dale.

  • Inductance: 22μH
  • Tolerance: ±20%
  • Current: 4.3A
  • DC Resistance: 89mOhm
  • Temperature Range: -55°C to 125°C
  • AEC-Q200: Compliant
  • Package: Surface-mount
