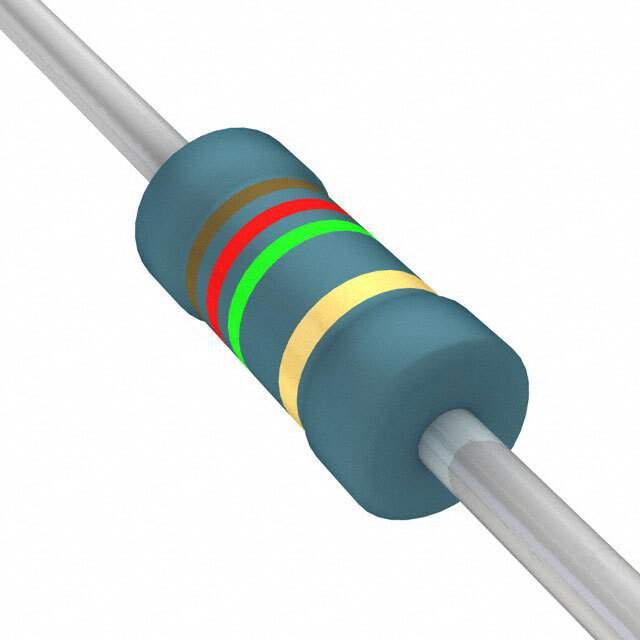

Same model may have multiple batches, images only for reference.

HVR3700001204JA100

Name: HVR3700001204JA100
Brand: Vishay
SKU: WS1307710
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HVR3700001204JA100
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 1.2M OHM 5% 1/2W AXIAL
Datasheet	HVR3700001204JA100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1307710-HVR3700001204JA100
Manufacturer	Vishay Beyschlag/Draloric/BC Components
Category	Resistors>Through Hole Resistors
Packaging	Cut Tape (CT) Tape & Box (TB)
Part Status	Active
Resistance (Ohms)	1.2 MOhms
Tolerance (+ or -)	±5%
Power (Watts)	0.5W, 1/2W
Composition	Metal Film
Temperature Coefficient	±200ppm/°C
Operating Temperature	-55°C ~ 155°C
Ultra Librarian 3D Model	Ultra Librarian HVR3700001204JA100 CAD Model

Alternative Products

Description

A homogenous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned electrolytic copper wires are welded to the end-caps. The resistors are coated with a blue, non-flammable lacquer, which provides electrical, mechanical, and climatic protection.
